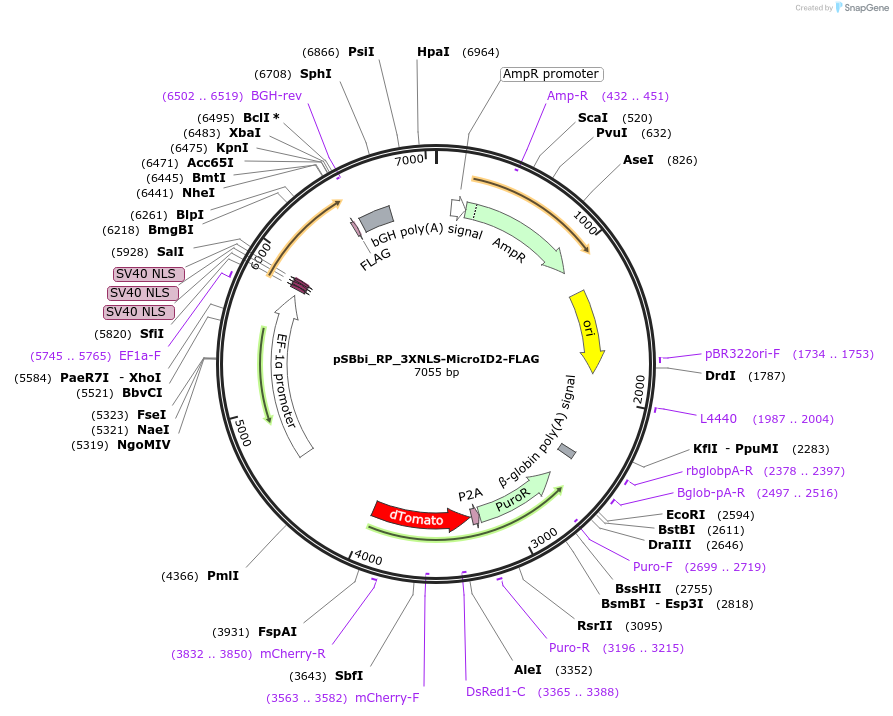

pSBbi_RP_3XNLS-MicroID2-FLAG
(Plasmid
#188523)
-
PurposeEncodes the biotin proximity labeling enzyme MicroID2 with a 3X nuclear localization sequence (NLS) for expression and stable integration into mammalian cells
-
Depositing Lab
-
Depositing OrganizationOhio State University
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 188523 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 188523-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 188523-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepSBbi-RP
-
Backbone manufacturerEric Kowarz Lab
- Backbone size w/o insert (bp) 6350
- Total vector size (bp) 7056
-
Vector typeMammalian Expression ; Transposon mediated gene integration
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert name3XNLS-MicroID2
-
SpeciesSynthetic; Aquifex aeolicus
-
Insert Size (bp)652
- Promoter EF1a/RPBSA
-
Tag
/ Fusion Protein
- FLAG (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site SfiI/NcoI (unknown if destroyed)
- 3′ cloning site XbaI (unknown if destroyed)
- 5′ sequencing primer EF1a-F
- 3′ sequencing primer BGH-rev
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 188523-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 188523-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pSBbi_RP_3XNLS-MicroID2-FLAG was a gift from James Londino (Addgene plasmid # 188523 ; http://n2t.net/addgene:188523 ; RRID:Addgene_188523) -
For your References section:
MicroID2: A Novel Biotin Ligase Enables Rapid Proximity Dependent Proteomics. Johnson BS, Chafin L, Farkas D, Adair J, Elhance A, Farkas L, Bednash JS, Londino JD. Mol Cell Proteomics. 2022 Jun 7:100256. doi: 10.1016/j.mcpro.2022.100256. 10.1016/j.mcpro.2022.100256 PubMed 35688383
