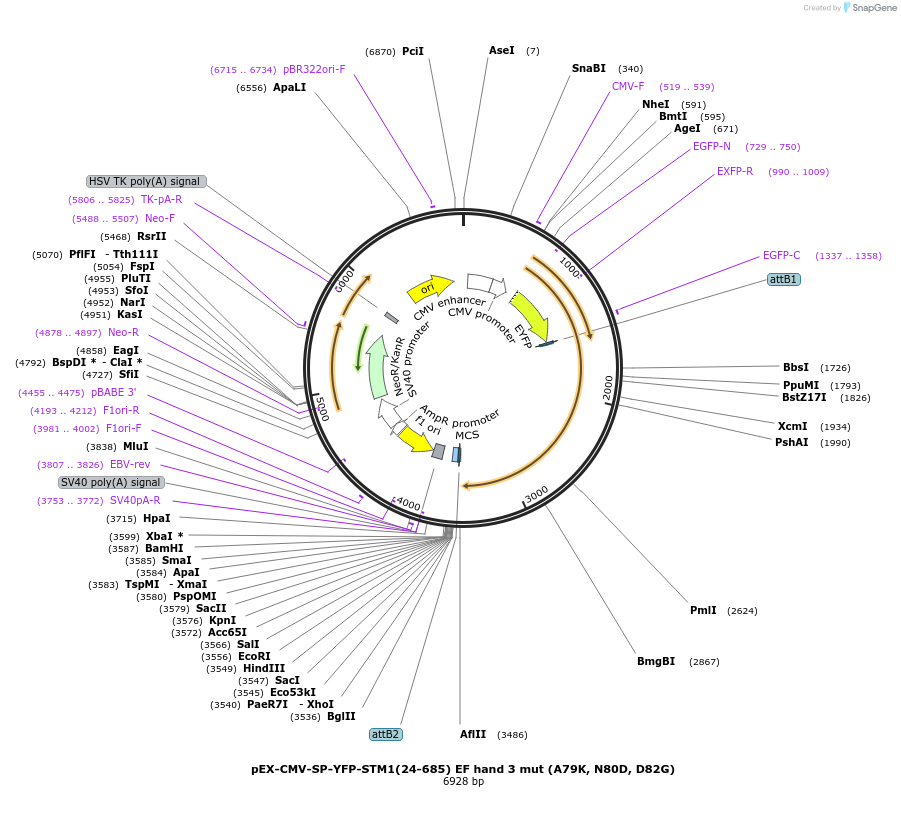

pEX-CMV-SP-YFP-STM1(24-685) EF hand 3 mut (A79K, N80D, D82G)
(Plasmid #18865)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 18865 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 18865-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 18865-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    Gateway destination vector
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Stromal interaction molecule 1
  • Alt name
    STIM1
  • Species
    H. sapiens (human)
  • Mutation
    3 mutations (A79K, N80D, D82G) in the EF hand of STIM1. YFP inserted between signal peptide(SP)of STIM1 and residues 24-685 of STIM1. (Lab plasmid WS5182)
  • Entrez Gene
    STIM1 (a.k.a. D11S4896E, GOK, IMD10, STRMK, TAM, TAM1)
  • Tag / Fusion Protein
    • YFP (N terminal on backbone)

Cloning Information

  • Cloning method Gateway Cloning
  • 5′ cloning site attB1 (unknown if destroyed)
  • 3′ cloning site attB2 (unknown if destroyed)
  • 5′ sequencing primer n/a
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEX-CMV-SP-YFP-STM1(24-685) EF hand 3 mut (A79K, N80D, D82G) was a gift from Tobias Meyer (Addgene plasmid # 18865 ; http://n2t.net/addgene:18865 ; RRID:Addgene_18865)

  • For your References section:

    STIM2 is a feedback regulator that stabilizes basal cytosolic and endoplasmic reticulum Ca2+ levels. Brandman O, Liou J, Park WS, Meyer T. Cell. 2007 Dec 28. 131(7):1327-39. 10.1016/j.cell.2007.11.039 PubMed 18160041
