mVenus-RapR-PTPPest
(Plasmid
#188657)
-
PurposeRapamycin regulated PTPPest with mVenus tag
-
Depositing Lab
-
Depositing OrganizationUniversity of Illinois at Chicago
Located in the United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 188657 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 188657-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 188657-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepmVenus-C1
- Backbone size w/o insert (bp) 4693
- Total vector size (bp) 7314
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameProtein Tyrosine Phosphatase Pest
-
Alt namePTPPest
-
Alt namePTPN12
-
Insert Size (bp)2621
-
Entrez GenePTPN12 (a.k.a. PTP-PEST, PTPG1)
- Promoter CMV
-
Tag
/ Fusion Protein
- mVenus (N terminal on backbone)
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
- 3′ sequencing primer GAAATTTGTGATGCTATTGC
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 188657-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 188657-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
mVenus-RapR-PTPPest was a gift from Andrei Karginov (Addgene plasmid # 188657 ; http://n2t.net/addgene:188657 ; RRID:Addgene_188657) -
For your References section:
Dissecting protein tyrosine phosphatase signaling by engineered chemogenetic control of its activity. Fauser J, Huyot V, Matsche J, Szynal BN, Alexeev Y, Kota P, Karginov AV. J Cell Biol. 2022 Aug 1;221(8). pii: 213352. doi: 10.1083/jcb.202111066. Epub 2022 Jul 13. 10.1083/jcb.202111066 PubMed 35829702

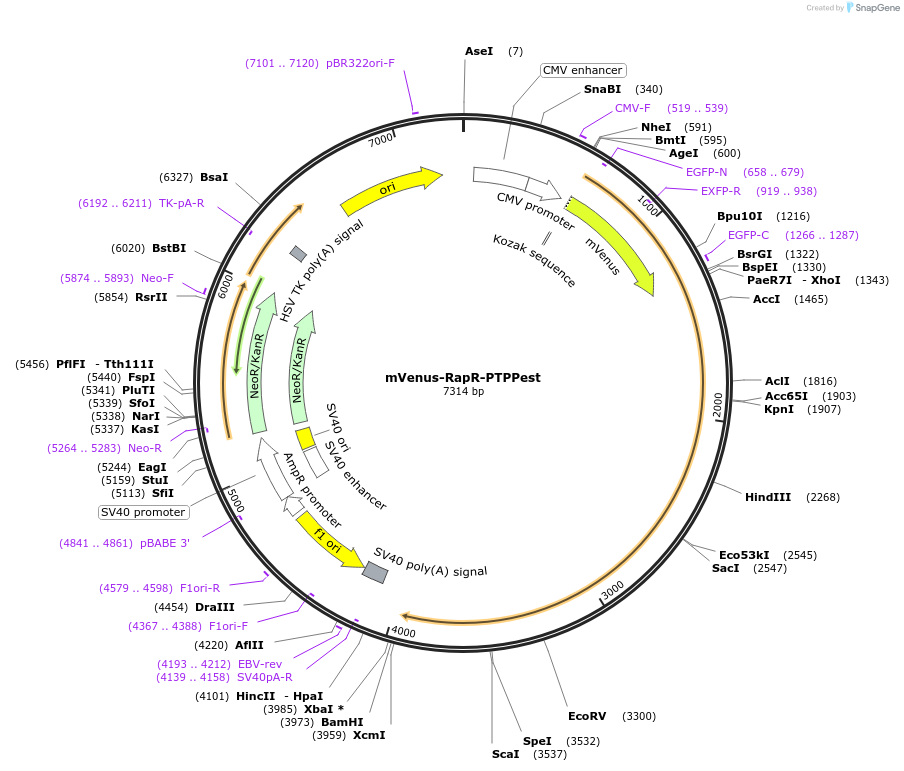

Map uploaded by the depositor.
