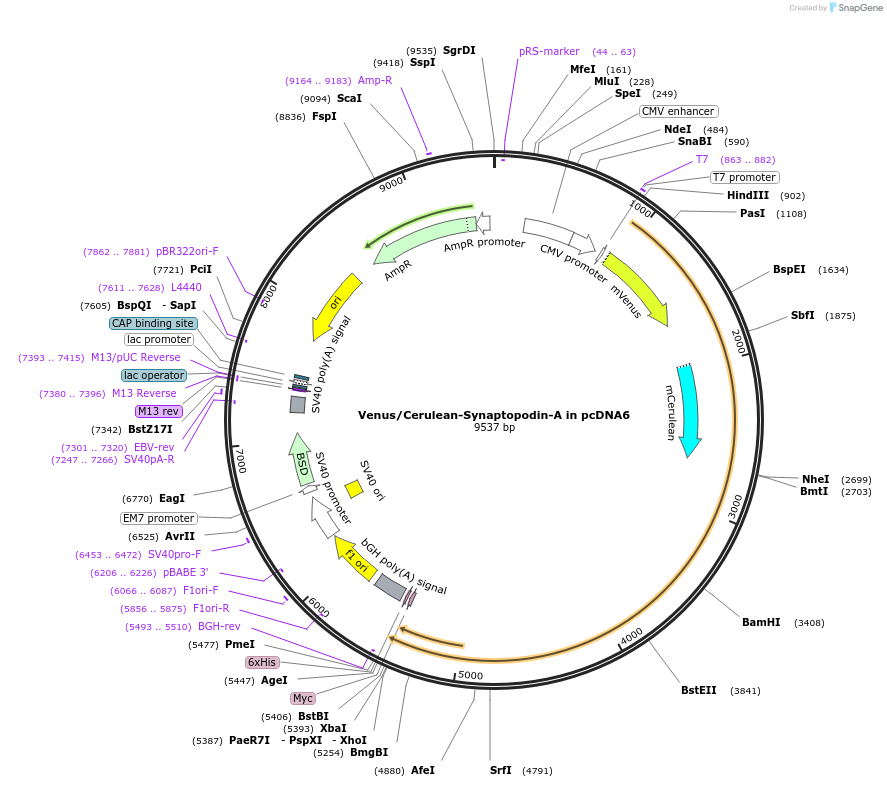

Venus/Cerulean-Synaptopodin-A in pcDNA6
(Plasmid #190798)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 190798 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pcDNA6 myc-HisA
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5126
  • Total vector size (bp) 9537
  • Vector type
    Mammalian Expression
  • Selectable markers
    Blasticidin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Synaptopodin-A
  • Species
    H. sapiens (human), Synthetic
  • GenBank ID
    NP_009217.3
  • Entrez Gene
    SYNPO
  • Promoter CMV
  • Tags / Fusion Proteins
    • Venus (N terminal on insert)
    • Cerulean (N terminal on insert)
    • myc (C terminal on insert)
    • His (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HINDIII (unknown if destroyed)
  • 3′ cloning site XhoI (unknown if destroyed)
  • 5′ sequencing primer Clone EZ, Genscript
  • 3′ sequencing primer Clone EZ Genscript
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Genscript

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Venus/Cerulean-Synaptopodin-A in pcDNA6 was a gift from Vivian Tang (Addgene plasmid # 190798 ; http://n2t.net/addgene:190798 ; RRID:Addgene_190798)
  • For your References section:

    Synaptopodin stress fiber and contractomere at the epithelial junction. Morris T, Sue E, Geniesse C, Brieher WM, Tang VW. J Cell Biol. 2022 May 2;221(5). pii: 213132. doi: 10.1083/jcb.202011162. Epub 2022 Apr 13. 10.1083/jcb.202011162 PubMed 35416930
