pEGFP-β-catenin_S23A,T40A,T41A,T112A
(Plasmid
#190824)
-
PurposeFor mammalian expression of β-catenin with 4 O-GlcNAc sites mutated (S23A, T40A, T41A and T112A) and GFP-tag on its N-terminus.
-
Depositing Lab
-
Depositing OrganizationUniversity of Georgia
Located in the United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 190824 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 * | |
| DNA | 190824-D50 | 50 μg of DNA in Tris buffer | $495 * | ||
| DNA | 190824-D100 | 100 μg of DNA in Tris buffer | $585 * | ||
* Log in to view industry pricing.
Backbone
-
Vector backbonepEGFP
- Total vector size (bp) 7362
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameβ-catenin
-
Alt nameCTNNB1
-
SpeciesG. gallus (chicken)
-
Insert Size (bp)2343
-
MutationS23A, T40A, T41A, T112A
-
GenBank ID
-
Entrez GeneCTNNB1 (a.k.a. CHBCAT)
- Promoter CMV
-
Tag
/ Fusion Protein
- GFP (N terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer EGFP-C
- 3′ sequencing primer SV40pA-R
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byThis plasmid was generated from Addgene #16071.
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 190824-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 190824-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEGFP-β-catenin_S23A,T40A,T41A,T112A was a gift from Gerald Hart (Addgene plasmid # 190824 ; http://n2t.net/addgene:190824 ; RRID:Addgene_190824) -
For your References section:
Dual-specificity RNA aptamers enable manipulation of target-specific O-GlcNAcylation and unveil functions of O-GlcNAc on beta-catenin. Zhu Y, Hart GW. Cell. 2022 Dec 30:S0092-8674(22)01529-X. doi: 10.1016/j.cell.2022.12.016. 10.1016/j.cell.2022.12.016 PubMed 36626902

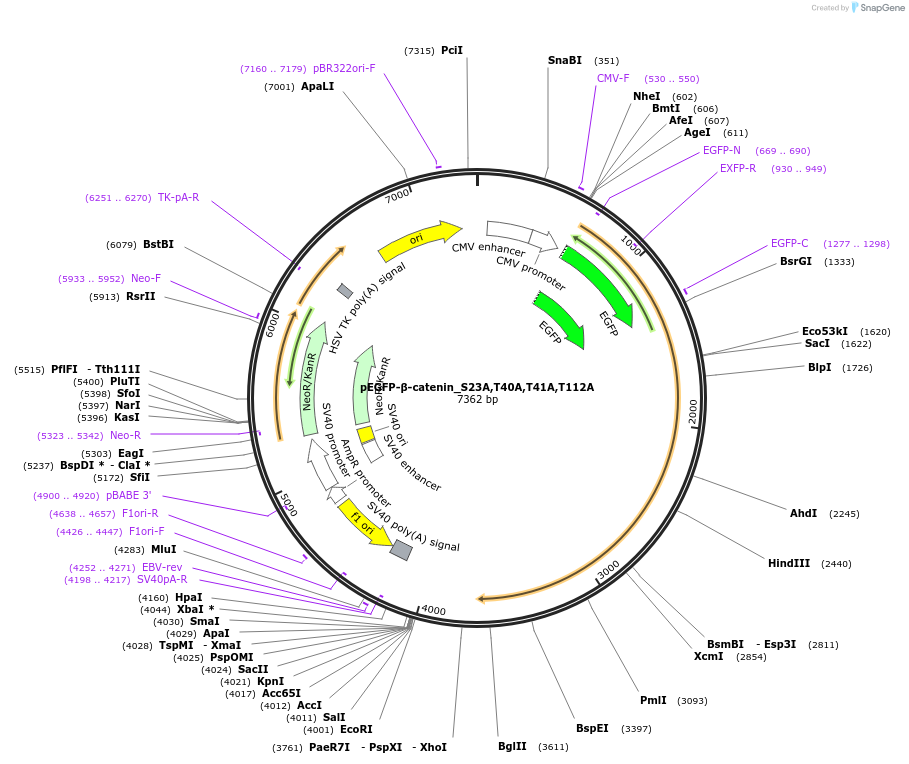

Map uploaded by the depositor.
