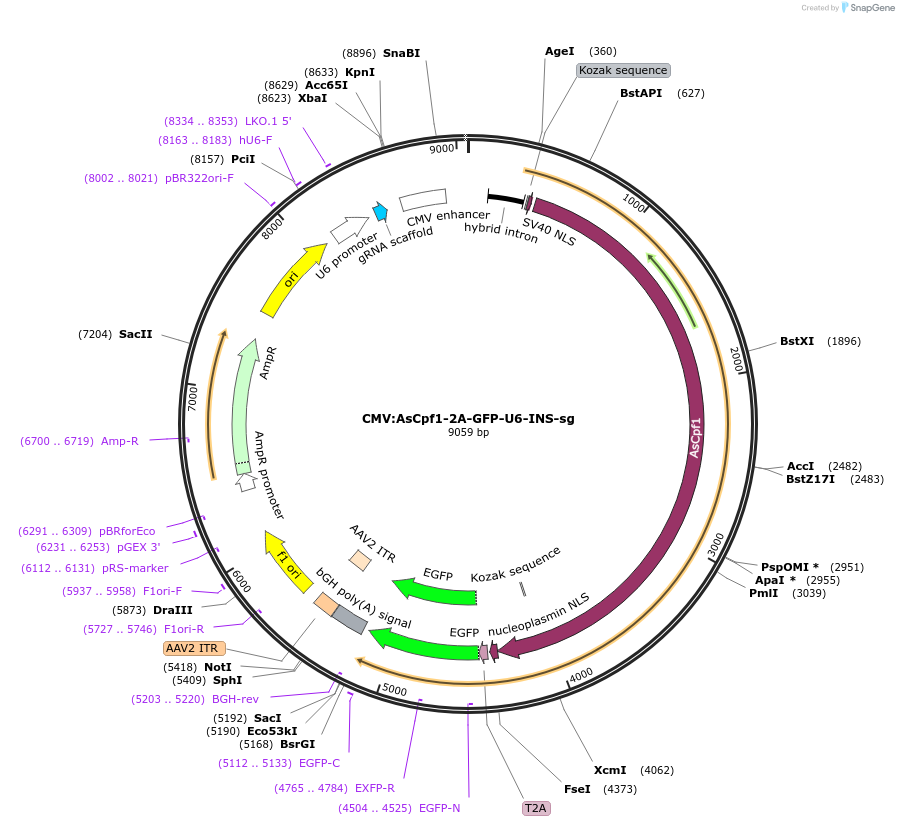

PurposeBicistronic vector expressing CMV promoter driven AsCpf1, and U6 promoter driven guide RNA that target hINS
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||194719||Standard format: Plasmid sent in bacteria as agar stab||1||$85|
This material is available to academics and nonprofits only.
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
Bacterial Resistance(s)Ampicillin, 100 μg/mL
Growth Strain(s)NEB Stable
Copy numberHigh Copy
Entrez GeneINS (a.k.a. IDDM, IDDM1, IDDM2, ILPR, IRDN, MODY10, PNDM4)
- Cloning method Restriction Enzyme
- 5′ cloning site unknown (unknown if destroyed)
- 3′ cloning site unknown (unknown if destroyed)
- 5′ sequencing primer unknown (Common Sequencing Primers)
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.
p-76 of Supplemental Table 2 of https://www.biorxiv.org/content/10.1101/2022.04.13.488123v1.full
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:CMV:AsCpf1-2A-GFP-U6-INS-sg was a gift from Rudolf Jaenisch (Addgene plasmid # 194719 ; http://n2t.net/addgene:194719 ; RRID:Addgene_194719)
For your References section:Multiplex genome editing of human pluripotent stem cells using Cpf1. Haiting Ma, Rudolf Jaenisch. bioRxiv 10.1101/2022.04.13.488123
