pPV-EF1a-EGxxFP(DMDex45_10)-iP-A
(Plasmid
#204621)
-
PurposeSingle-strand annealing (SSA) vector for monitoring crRNA(DMDex45)'s activity. DMD intron 44 region (upstream of exon 45)
-
Depositing Lab
-
Depositing OrganizationKyoto University, Center for iPS Cell Research and Application
Located in Japan -

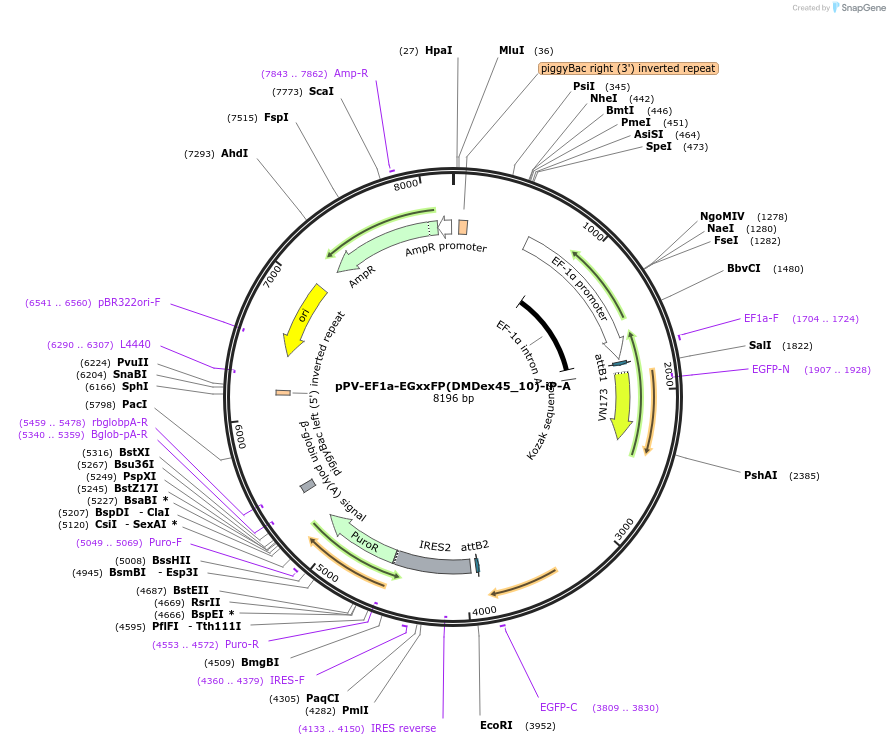

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 204621 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 204621-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 204621-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepPV
- Backbone size w/o insert (bp) 6200
-
Vector typeMammalian Expression
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameEGFP
-
SpeciesSynthetic
-
Insert Size (bp)2000
- Promoter EF1a
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer GCGGTCTCTGTCAGCcatgggcattcaagagagtatgg
- 3′ sequencing primer AGGTCTCACGGTAGCgaacaaacataggttagtcacag
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 204621-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 204621-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pPV-EF1a-EGxxFP(DMDex45_10)-iP-A was a gift from Akitsu Hotta (Addgene plasmid # 204621 ; http://n2t.net/addgene:204621 ; RRID:Addgene_204621) -
For your References section:
Dual CRISPR-Cas3 system for inducing multi-exon skipping in DMD patient-derived iPSCs. Kita Y, Okuzaki Y, Naoe Y, Lee J, Bang U, Okawa N, Ichiki A, Jonouchi T, Sakurai H, Kojima Y, Hotta A. Stem Cell Reports. 2023 Sep 12;18(9):1753-1765. doi: 10.1016/j.stemcr.2023.07.007. Epub 2023 Aug 24. 10.1016/j.stemcr.2023.07.007 PubMed 37625413
