pSC-mCh-P2A-ST-EGFP-CAAX
(Plasmid
#207636)
-
PurposeA plasmid encoding photocaged SpyCatcher (pSC) fused to mCherry and a SpyTag-EGFP localized to the cell membrane via CAAX tag
-
Depositing Lab
-
Depositing OrganizationUniversity of Washington
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 207636 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 207636-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 207636-D100 | 100 μg of DNA in Tris buffer | $585 | ||

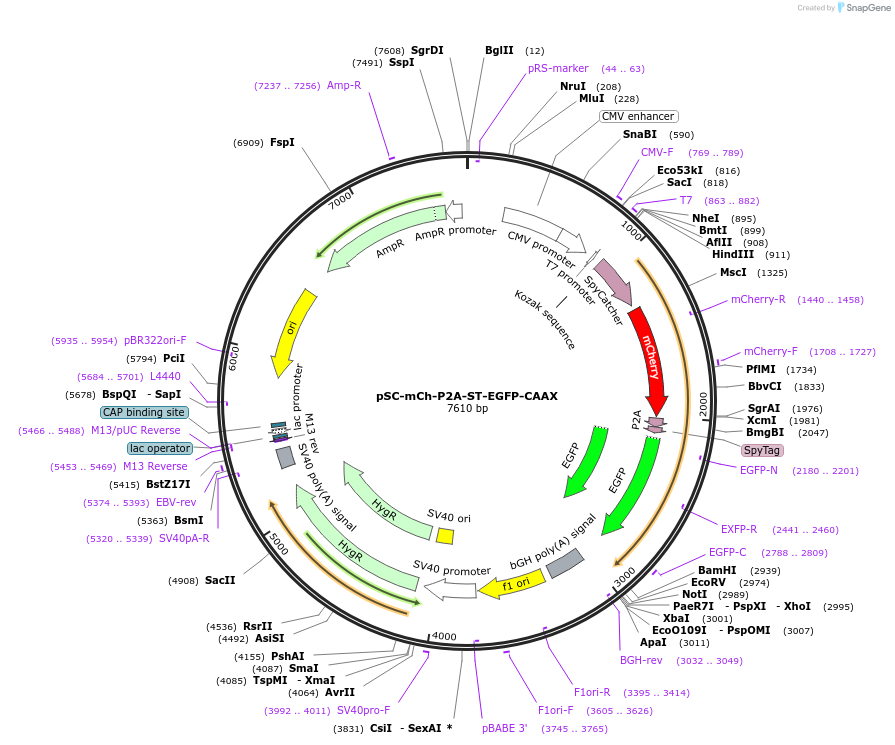

Backbone
-
Vector backbonepC3.1
- Backbone size w/o insert (bp) 5598
-
Vector typeMammalian Expression
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namephotocaged SpyCatcher-mCh-P2A-SpyTag-EGFP-CAAX
-
SpeciesSynthetic
-
Insert Size (bp)2013
-
MutationAmber stop codon at SpyCatcher’s critical lysine
- Promoter CMV
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site HindIII (unknown if destroyed)
- 3′ cloning site BamHI (unknown if destroyed)
- 5′ sequencing primer T7F
- 3′ sequencing primer T7R
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 207636-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 207636-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pSC-mCh-P2A-ST-EGFP-CAAX was a gift from Cole DeForest (Addgene plasmid # 207636 ; http://n2t.net/addgene:207636 ; RRID:Addgene_207636) -
For your References section:
Spatiotemporal functional assembly of split protein pairs through a light-activated SpyLigation. Ruskowitz ER, Munoz-Robles BG, Strange AC, Butcher CH, Kurniawan S, Filteau JR, DeForest CA. Nat Chem. 2023 May;15(5):694-704. doi: 10.1038/s41557-023-01152-x. Epub 2023 Apr 17. 10.1038/s41557-023-01152-x PubMed 37069270
