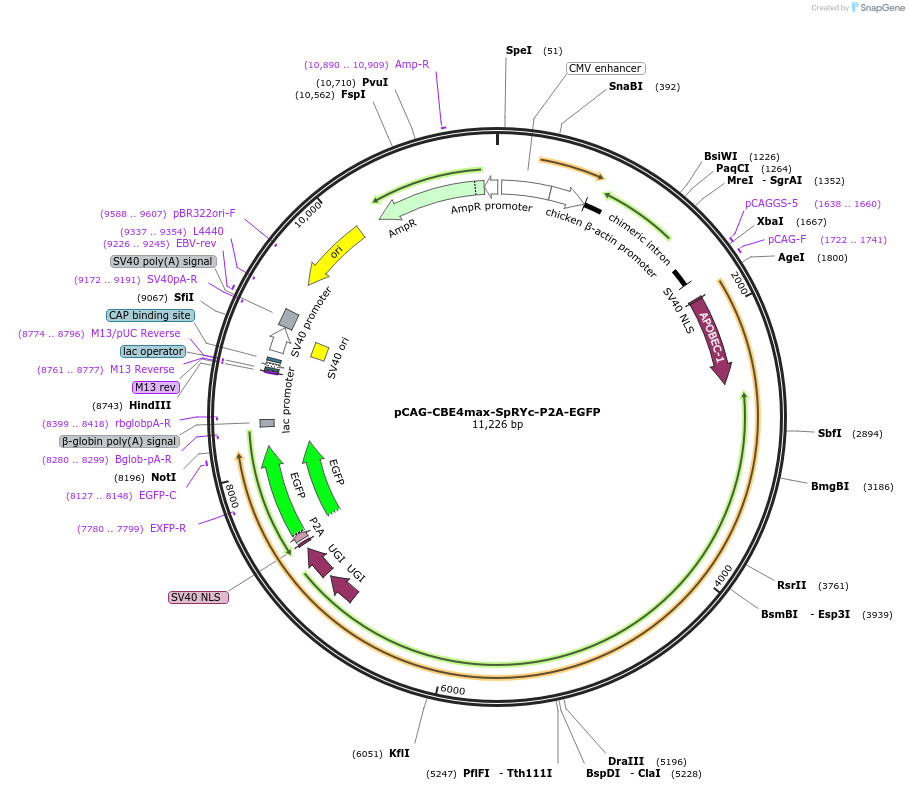

pCAG-CBE4max-SpRYc-P2A-EGFP
(Plasmid #208336)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 208336 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 208336-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 208336-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    pRZ33
  • Backbone manufacturer
    Keith Joung
  • Total vector size (bp) 11222
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    human codon optimized CBE4max Cas9 variant named SpRYc with P2A-EGFP
  • Species
    Synthetic
  • Insert Size (bp)
    6380
  • Mutation
    Sc++ (1-1119), SpRY (1111-1368), D10A
  • Promoter CAG
  • Tag / Fusion Protein
    • P2A-EGFP (C terminal on insert)

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please note that the sequence IDs for Plasmid 208336: pCAG-CBE4max-SpRYc-P2A-EGFP and Plasmid 208340: pCMV-SpRYc-ABE8e are incorrectly swapped in the associated paper. The correct plasmid ID for pCAG-CBE4max-SpRYc-P2A-EGFP is 208336.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCAG-CBE4max-SpRYc-P2A-EGFP was a gift from Pranam Chatterjee (Addgene plasmid # 208336 ; http://n2t.net/addgene:208336 ; RRID:Addgene_208336)

  • For your References section:

    PAM-flexible genome editing with an engineered chimeric Cas9. Zhao L, Koseki SRT, Silverstein RA, Amrani N, Peng C, Kramme C, Savic N, Pacesa M, Rodriguez TC, Stan T, Tysinger E, Hong L, Yudistyra V, Ponnapati MR, Jacobson JM, Church GM, Jakimo N, Truant R, Jinek M, Kleinstiver BP, Sontheimer EJ, Chatterjee P. Nat Commun. 2023 Oct 4;14(1):6175. doi: 10.1038/s41467-023-41829-y. 10.1038/s41467-023-41829-y PubMed 37794046
