OTR untagged
(Plasmid
#208913)
-
Purposeencodes the human oxytocin receptor, without any tags
-
Depositing Lab
-
Depositing OrganizationMedical University of Vienna
Located in Austria -

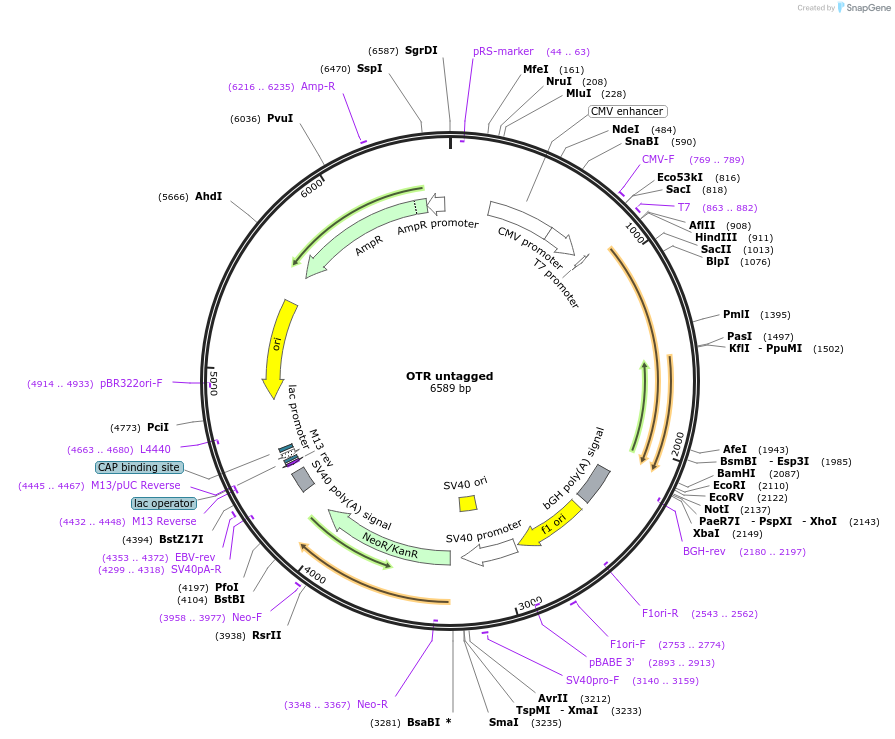

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 208913 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 208913-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 208913-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA3.1 or 3.0
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 5400
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameOXTR
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1200
-
Entrez GeneOXTR (a.k.a. OT-R, OTR)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site SacI (unknown if destroyed)
- 3′ cloning site BamHI (unknown if destroyed)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 208913-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 208913-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
OTR untagged was a gift from Christian Gruber (Addgene plasmid # 208913 ; http://n2t.net/addgene:208913 ; RRID:Addgene_208913) -
For your References section:
Nature-inspired dimerization as a strategy to modulate neuropeptide pharmacology exemplified with vasopressin and oxytocin. Dekan Z, Kremsmayr T, Keov P, Godin M, Teakle N, Durrauer L, Xiang H, Gharib D, Bergmayr C, Hellinger R, Gay M, Vilaseca M, Kurzbach D, Albericio F, Alewood PF, Gruber CW, Muttenthaler M. Chem Sci. 2021 Feb 4;12(11):4057-4062. doi: 10.1039/d0sc05501h. 10.1039/d0sc05501h PubMed 34163676
