Purpose(Empty Backbone) For N-terminal tagging with mStayGold. c4 is the appendage that facilitates fusions to the C-terminus of mStayGold.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 212018 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |

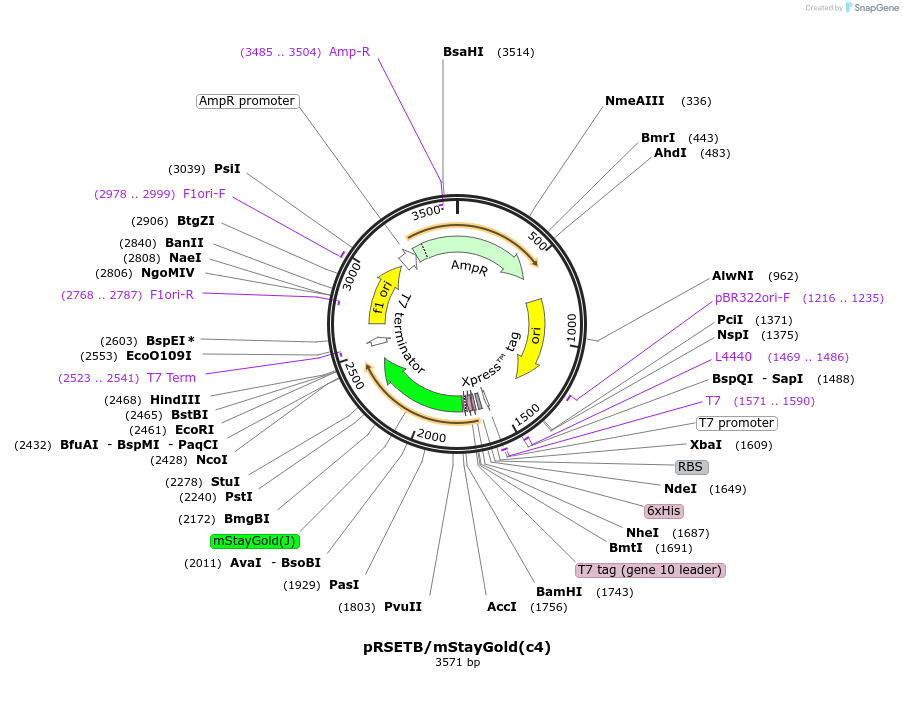

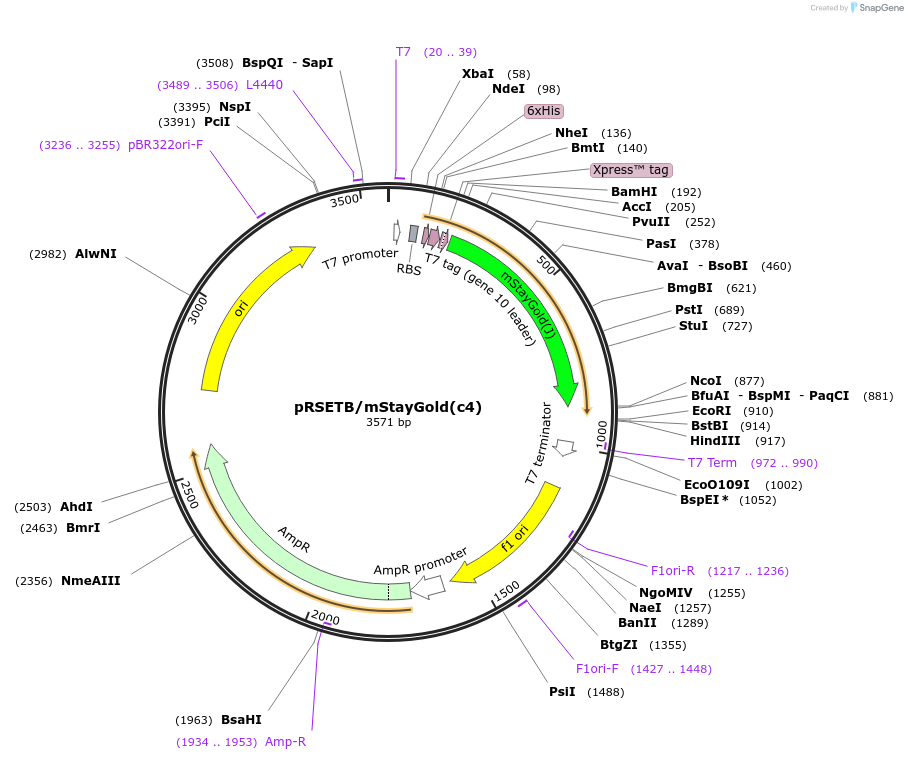

Backbone
-
Vector backbonepRSETB
-
Backbone manufacturerThermoFisher
- Backbone size (bp) 2900
-
Vector typeBacterial Expression
- Promoter T7
-
Tag
/ Fusion Protein
- 6xHis, T7 tag, Xpress tag, mStayGold(c4) (N terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer T7
- 3′ sequencing primer pRSET reverse
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://doi.org/10.21203/rs.3.rs-2941917/v1 for ResearchSquare preprint.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pRSETB/mStayGold(c4) was a gift from Atsushi Miyawaki (Addgene plasmid # 212018 ; http://n2t.net/addgene:212018 ; RRID:Addgene_212018) -
For your References section:
StayGold variants for molecular fusion and membrane-targeting applications. Ando R, Shimozono S, Ago H, Takagi M, Sugiyama M, Kurokawa H, Hirano M, Niino Y, Ueno G, Ishidate F, Fujiwara T, Okada Y, Yamamoto M, Miyawaki A. Nat Methods. 2023 Nov 30. doi: 10.1038/s41592-023-02085-6. 10.1038/s41592-023-02085-6 PubMed 38036853
