psiCHECK-VIM270-gCM
(Plasmid
#215868)
-
PurposeThis plasmid encodes luciferase which has siRNA binding sites in 3'UTR for detecting the knockdown efficiency of siRNA.
-
Depositing Lab
-
Depositing OrganizationThe University of Tokyo
Located in Japan -

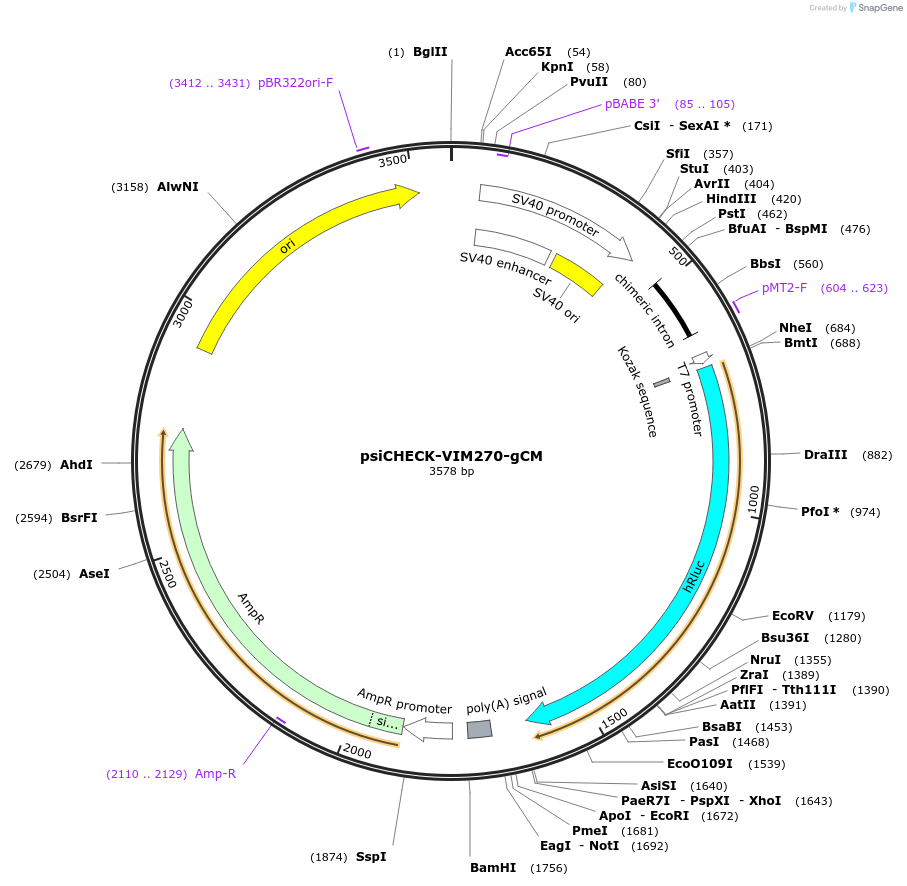

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 215868 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 215868-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 215868-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepsiCHECK-1
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nametarget site which is completely complementary to guide strand of siRNA for vimentin is inserted to 3'UTR of RLuc
-
SpeciesH. sapiens (human)
-
Entrez GeneVIM
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Unknown (unknown if destroyed)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 215868-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 215868-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
psiCHECK-VIM270-gCM was a gift from Kumiko Ui-Tei (Addgene plasmid # 215868 ; http://n2t.net/addgene:215868 ; RRID:Addgene_215868) -
For your References section:
Chemical Modification of the siRNA Seed Region Suppresses Off-Target Effects by Steric Hindrance to Base-Pairing with Targets. Iribe H, Miyamoto K, Takahashi T, Kobayashi Y, Leo J, Aida M, Ui-Tei K. ACS Omega. 2017 May 31;2(5):2055-2064. doi: 10.1021/acsomega.7b00291. Epub 2017 May 12. 10.1021/acsomega.7b00291 PubMed 29450406
