RepairTemplate_NIPBL_mEGFP_mAID
(Plasmid
#217664)
-
PurposeRepair template to endogenously tag NIPBL with mEGFP-mAID Tag
-
Depositing Lab
-
Depositing OrganizationInstitut fuer Molekulare Biotechnologie (IMBA)
Located in Austria -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 217664 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 217664-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 217664-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepCR2.1
- Backbone size w/o insert (bp) 3913
- Total vector size (bp) 6327
-
Modifications to backboneThe backbone was digested with EcoRV. Insert ordered as gBlock and blunt-end cloned into vector
-
Vector typeMammalian Expression, Bacterial Expression
-
Selectable markersmeGFP
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin and Kanamycin, 100 & 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNIPBL_mEGFP_mAID
-
SpeciesH. sapiens (human)
-
Insert Size (bp)2414
-
Entrez GeneNIPBL (a.k.a. CDLS, CDLS1, IDN3, IDN3-B, Scc2)
-
Tags
/ Fusion Proteins
- meGFP
- mAID
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRV (destroyed during cloning)
- 3′ cloning site None (unknown if destroyed)
- 5′ sequencing primer CAGGAAACAGCTATGAC
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 217664-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 217664-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
RepairTemplate_NIPBL_mEGFP_mAID was a gift from Daniel Gerlich (Addgene plasmid # 217664 ; http://n2t.net/addgene:217664 ; RRID:Addgene_217664) -
For your References section:
Cohesin-mediated DNA loop extrusion resolves sister chromatids in G2 phase. Batty P, Langer CC, Takacs Z, Tang W, Blaukopf C, Peters JM, Gerlich DW. EMBO J. 2023 Aug 15;42(16):e113475. doi: 10.15252/embj.2023113475. Epub 2023 Jun 26. 10.15252/embj.2023113475 PubMed 37357575

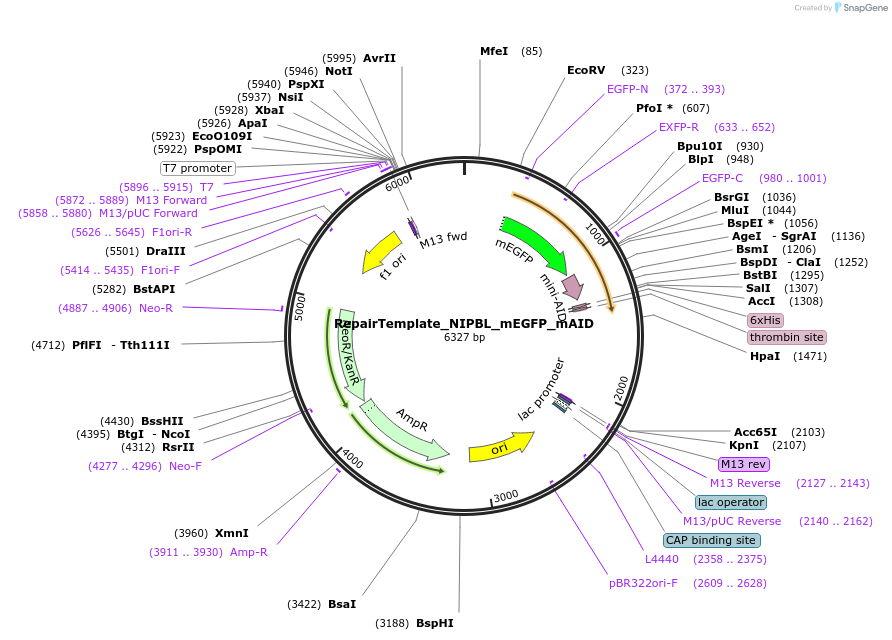

Map uploaded by the depositor.
