(Plasmid #217894)


This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 217894 Standard format: Plasmid sent in bacteria as agar stab 1 $85


  • Vector backbone
  • Total vector size (bp) 6351
  • Vector type
    Insect Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Gentamicin, 10 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number

Gene/Insert 1

  • Gene/Insert name
  • Species
    H. sapiens (human)
  • Entrez Gene
    PSMA5 (a.k.a. PSC5, ZETA)

Gene/Insert 2

  • Gene/Insert name
  • Species
    H. sapiens (human)
  • Entrez Gene
    PSMA6 (a.k.a. IOTA, PROS27, p27K)

Gene/Insert 3

  • Gene/Insert name
  • Species
    H. sapiens (human)
  • Entrez Gene
    PSMA7 (a.k.a. C6, HEL-S-276, HSPC, RC6-1, XAPC7)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

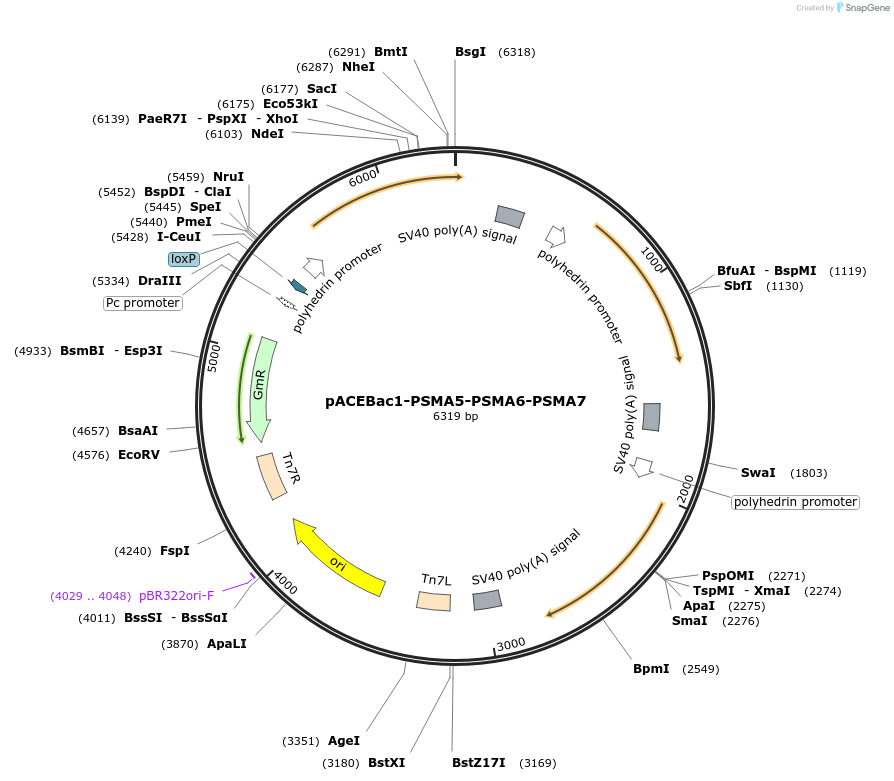

    pACEBac1-PSMA5-PSMA6-PSMA7 was a gift from Brenda Schulman (Addgene plasmid # 217894 ; ; RRID:Addgene_217894)
  • For your References section:

    Visualizing chaperone-mediated multistep assembly of the human 20S proteasome. Adolf F, Du J, Goodall EA, Walsh RM Jr, Rawson S, von Gronau S, Harper JW, Hanna J, Schulman BA. Nat Struct Mol Biol. 2024 Apr 10. doi: 10.1038/s41594-024-01268-9. 10.1038/s41594-024-01268-9 PubMed 38600324
