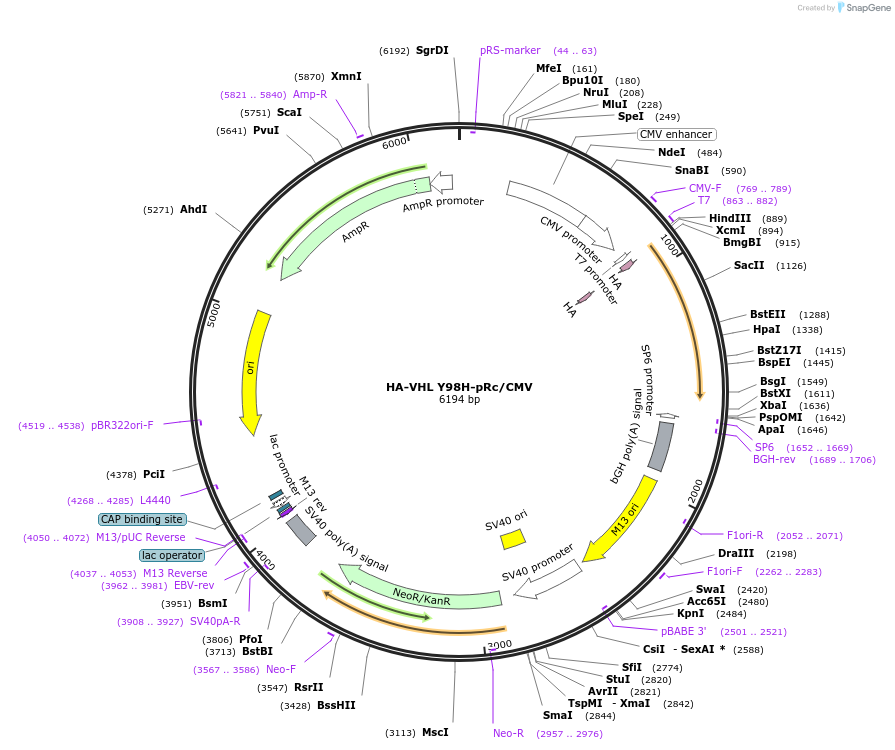

HA-VHL Y98H-pRc/CMV
(Plasmid #22044)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 22044 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 22044-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 22044-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    pRc/CMV
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5448
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    DH5 alpha or XL1 @ 37˚C
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    von Hippel-Lindau tumor suppressor (VHL)
  • Alt name
    vHL
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    745
  • Mutation
    point mutant, converting aa 98 from Tyrosine to Histidine (Y98H)
  • GenBank ID
    NM_000551
  • Entrez Gene
    VHL (a.k.a. HRCA1, RCA1, VHL1, pVHL)
  • Tag / Fusion Protein
    • HA-tag (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Hind III (destroyed during cloning)
  • 3′ cloning site Xba I (destroyed during cloning)
  • 5′ sequencing primer T7
  • 3′ sequencing primer SP6
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    HA-VHL Y98H-pRc/CMV was a gift from William Kaelin (Addgene plasmid # 22044 ; http://n2t.net/addgene:22044 ; RRID:Addgene_22044)

  • For your References section:

    The von Hippel-Lindau tumor suppressor protein is required for proper assembly of an extracellular fibronectin matrix. Ohh M, Yauch RL, Lonergan KM, Whaley JM, Stemmer-Rachamimov AO, Louis DN, Gavin BJ, Kley N, Kaelin WG, Iliopoulos O. Mol Cell. 1998 Jun . 1(7):959-68. 10.1016/S1097-2765(00)80096-9 PubMed 9651579
