pAc-Neo-OVA
(Plasmid #22533)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 22533 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 22533-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 22533-D100 100 μg of DNA in Tris buffer $585
Add to Cart

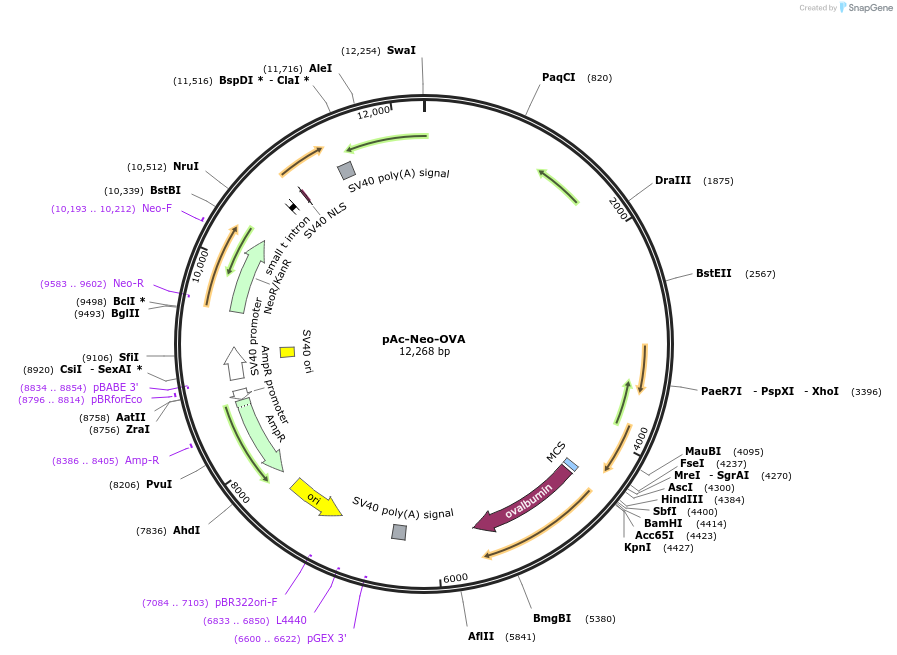

Backbone

  • Vector backbone
    pHBetaAPr-1-neo
  • Backbone manufacturer
    Kedes Lab
  • Backbone size w/o insert (bp) 10200
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    OVA
  • Species
    G. gallus (chicken)
  • Insert Size (bp)
    1700
  • Entrez Gene
    OVAL (a.k.a. OVA, SERPINB14)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer unknown
  • 3′ sequencing primer SV40pA-R
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Dr. B.W. O'Malley

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The OVA cDNA was removed from pOVA(230) (McReynolds et al., 1978) by digestion with EcoRI and subcloned into the polylinker of pUG-1. This provided convenient BglII and HindIII restriction sites adjacent to the ovalbumin cDNA for direct subcloning into the BamHI-HindIII site of the pHBetaAPr-1-neo express vector.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAc-Neo-OVA was a gift from Michael Bevan (Addgene plasmid # 22533 ; http://n2t.net/addgene:22533 ; RRID:Addgene_22533)

  • For your References section:

    Introduction of soluble protein into the class I pathway of antigen processing and presentation. Moore MW, Carbone FR, Bevan MJ. Cell. 1988 Sep 9. 54(6):777-85. 10.1016/S0092-8674(88)91043-4 PubMed 3261634
