pUC19-U6-BsmBI_epegRNA_entry-mpknot_(LM1140)
(Plasmid
#228253)
-
PurposepU6 entry plasmid for cloning prime editor mpknot epegRNAs (requires BsmBI or Esp3I digest and ligation of duplexed oligos)
-
Depositing Lab
-
Depositing OrganizationMassachusetts General Hospital
Located in the United States of America -

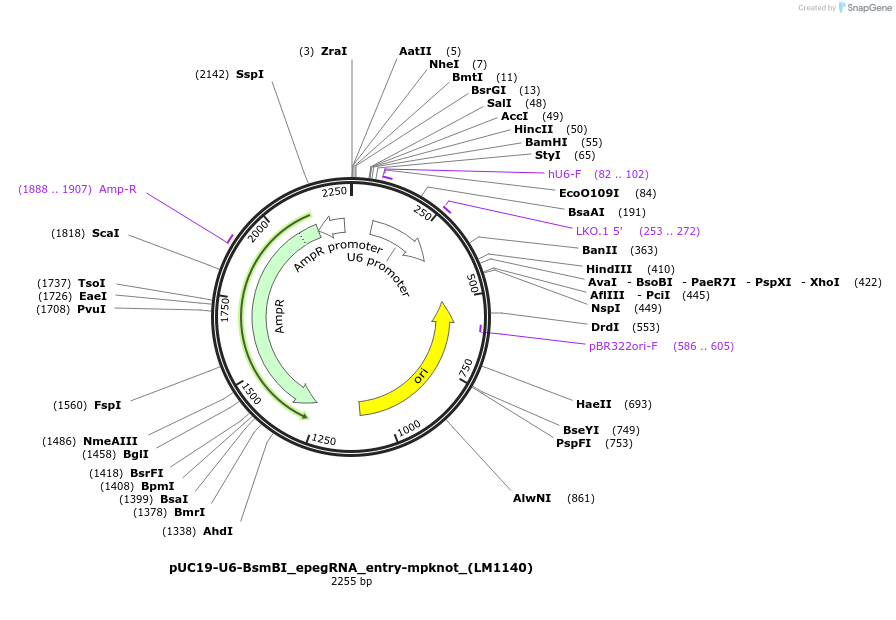

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 228253 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 228253-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 228253-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backboneBPK1520 (Addgene Plasmid #65777)
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namempknot entry plasmid backbone for epegRNA expression via human U6 promoter
-
Alt nameLM1140
-
Alt nameENTRY-mpknot-epegRNA
-
SpeciesSynthetic
-
Mutationn/a
- Promoter U6
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer oS280-CAGGGTTATTGTCTCATGAGCGG
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 228253-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 228253-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUC19-U6-BsmBI_epegRNA_entry-mpknot_(LM1140) was a gift from Benjamin Kleinstiver (Addgene plasmid # 228253 ; http://n2t.net/addgene:228253 ; RRID:Addgene_228253) -
For your References section:
Custom CRISPR-Cas9 PAM variants via scalable engineering and machine learning. Silverstein RA, Kim N, Kroell AS, Walton RT, Delano J, Butcher RM, Pacesa M, Smith BK, Christie KA, Ha LL, Meis RJ, Clark AB, Spinner AD, Lazzarotto CR, Li Y, Matsubara A, Urbina EO, Dahl GA, Correia BE, Marks DS, Tsai SQ, Pinello L, De Ravin SS, Liu Q, Kleinstiver BP. Nature. 2025 Apr 22. doi: 10.1038/s41586-025-09021-y. 10.1038/s41586-025-09021-y PubMed 40262634
