pYO1031
(Plasmid
#235706)
-
PurposeExpression of FL human Beclin 1 and FL human UVRAG in mammalian cells
-
Depositing Lab
-
Depositing OrganizationMRC Laboratory of Molecular Biology
Located in United Kingdom of Great Britain and Northern Ireland -
Citations
-

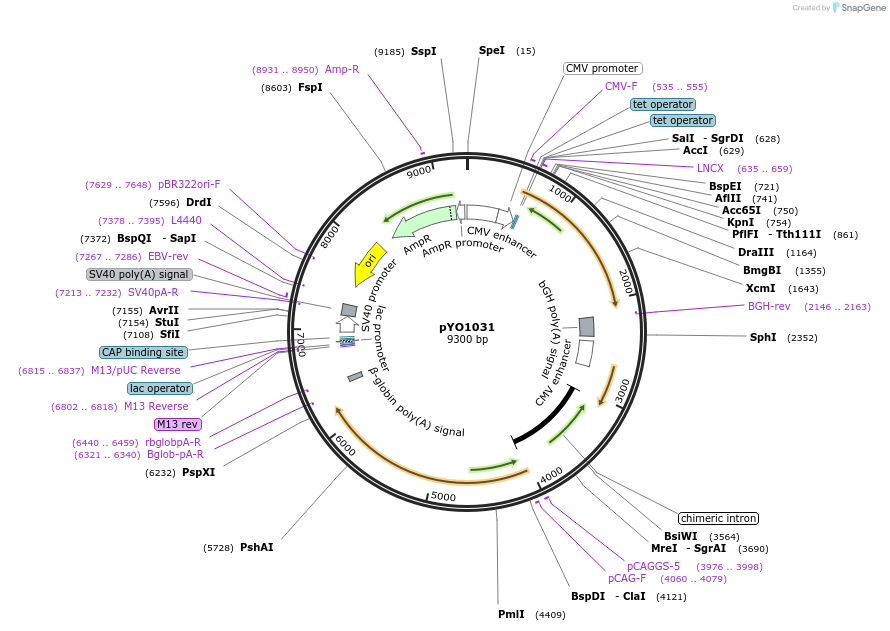

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 235706 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 235706-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 235706-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepCAG
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Growth instructionsDepositing lab also recommends XL10-gold E. coli for transformation.
-
Copy numberHigh Copy
Gene/Insert 1
-
Gene/Insert nameBeclin 1
-
SpeciesH. sapiens (human)
-
Entrez GeneBECN1 (a.k.a. ATG6, VPS30, beclin1)
- Promoter CMV
Cloning Information for Gene/Insert 1
- Cloning method Gibson Cloning
- 5′ sequencing primer n/a
- (Common Sequencing Primers)
Gene/Insert 2
-
Gene/Insert nameUVRAG
-
SpeciesH. sapiens (human)
-
Entrez GeneUVRAG (a.k.a. DHTX, VPS38, p63)
- Promoter CAG
Cloning Information for Gene/Insert 2
- Cloning method Gibson Cloning
- 5′ sequencing primer n/a
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
For other work using this plasmid, please see Buckles et al. 2020 PMID 33137306; Tremel et al. 2021 PMID 33692360.
DNA (Catalog # 235706-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 235706-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pYO1031 was a gift from Roger Williams (Addgene plasmid # 235706 ; http://n2t.net/addgene:235706 ; RRID:Addgene_235706) -
For your References section:
Membrane characteristics tune activities of endosomal and autophagic human VPS34 complexes. Ohashi Y, Tremel S, Masson GR, McGinney L, Boulanger J, Rostislavleva K, Johnson CM, Niewczas I, Clark J, Williams RL. Elife. 2020 Jun 30;9:e58281. doi: 10.7554/eLife.58281. 10.7554/eLife.58281 PubMed 32602837
