pFP34∆sfGFP
(Plasmid #247211)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 247211 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

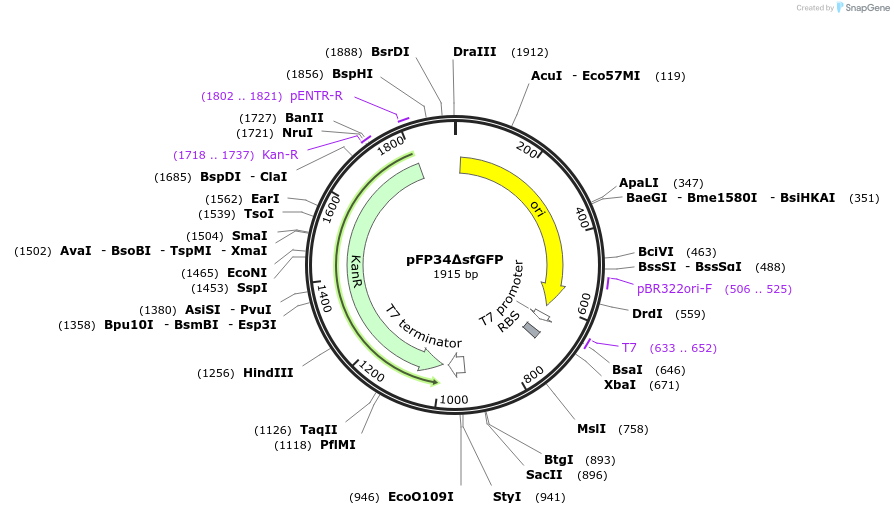

Backbone

  • Vector backbone
    pJL1
  • Total vector size (bp) 1915
  • Modifications to backbone
    The Dimeric Pepper RNA aptamer (with tRNA and F30 scaffolds) was inserted into the pJL1 backbone lacking the sfGFP gene.
  • Vector type
    Bacterial Expression, Synthetic Biology ; E. coli-based cell-free expression.

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    E. coli DH5alpha and DH10B are suitable for growth.
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Dimeric Pepper RNA aptamer (with tRNA and F30 scaffolds)
  • Alt name
    tDF30ppr
  • Insert Size (bp)
    214
  • Mutation
    Two mutations were made to the second Pepper unit (G9A and C42T)
  • Promoter T7

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The Pepper RNA aptamer was originally developed by Chen et al. (https://doi.org/10.1038/s41587-019-0249-1) and grafted onto tRNA and F30 scaffolds by Mumbleau et al. (https://doi.org/10.1021/acssynbio.4c00009) To insert the aptamer into pJL1, we purchased the Pepper aptamer sequence from Integrated DNA Technologies (IDT) as part of a gBlock with two point mutations in one of the Pepper units to increase the likelihood of successful synthesis.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pFP34∆sfGFP was a gift from Elizabeth Strychalski (Addgene plasmid # 247211 ; http://n2t.net/addgene:247211 ; RRID:Addgene_247211)

  • For your References section:

    Characterizing Cell-Free Transcription and Translation Dynamics with Nucleic Acid-Based Assays. Piorino F, Sundberg C, Strychalski EA, Romantseva E. ACS Synth Biol. 2026 Jan 16;15(1):243-261. doi: 10.1021/acssynbio.5c00677. Epub 2025 Dec 24. 10.1021/acssynbio.5c00677 PubMed 41444210
