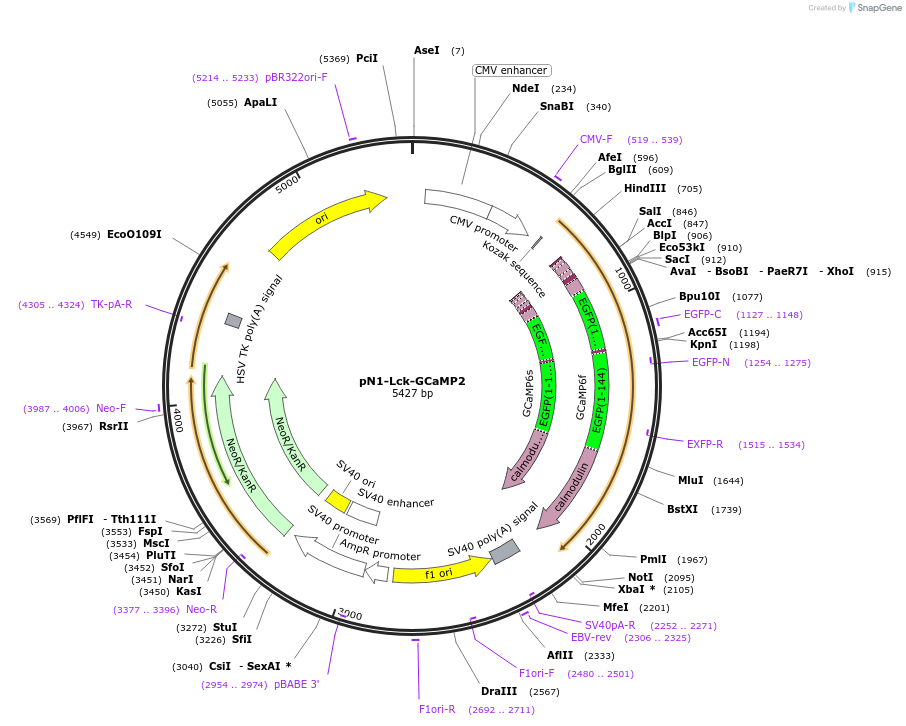

pN1-Lck-GCaMP2
(Plasmid #24794)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 24794 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 3950
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Lck-GCaMP2
  • Alt name
    GCaMP
  • Alt name
    GCaMP2
  • Alt name
    Lck-GCaMP
  • Insert Size (bp)
    1480
  • Mutation
    Plasmid contains N-terminal 26 amino acid membrane targeting sequence of Lck (Src tyrosine kinase) fused to GCaMP2. 6xHis and Xpress (FLAG-like) epitope tags contained within 'RSET' sequence, making up the linker region between Lck and GCaMP2
  • Tags / Fusion Proteins
    • His
    • Xpress

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer ACGGTGGGAGGTCTATATAAGCAGAG
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    A. Sagasti (UCLA) for the GCaMP2 plasmid and D.E. Bergles (Johns Hopkins) for the Lck domain containing plasmid.

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pN1-Lck-GCaMP2 was a gift from Baljit Khakh (Addgene plasmid # 24794 ; http://n2t.net/addgene:24794 ; RRID:Addgene_24794)
  • For your References section:

    A genetically targeted optical sensor to monitor calcium signals in astrocyte processes. Shigetomi E, Kracun S, Sofroniew MV, Khakh BS.. Nat Neurosci. 2010 Jun;13(6):759-66. 10.1038/nn.2557 PubMed 20495558
