pPF4354
(Plasmid
#254225)
-
PurposeMutagenesis plasmid encoding tnpA fused to PCH45 uvsX gene and the tn5 transposon harbouring AcrVIA1
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 254225 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
Backbone
-
Vector backbonepPF4213
- Total vector size (bp) 9268
-
Modifications to backboneThe tn5 transposase has been fused to the PCH45 uvsX gene and a linker at the N-terminus resulting in a uvsX::tnpA fusion.
-
Vector typeTransposon insertion mutagenesis vector
Growth in Bacteria
-
Bacterial Resistance(s)Tetracycline, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameuvsX & linker
-
SpeciesPhage PCH45
-
Insert Size (bp)1521
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://doi.org/10.64898/2025.12.19.695335 for bioRxiv preprint.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pPF4354 was a gift from Peter Fineran (Addgene plasmid # 254225 ; http://n2t.net/addgene:254225 ; RRID:Addgene_254225)

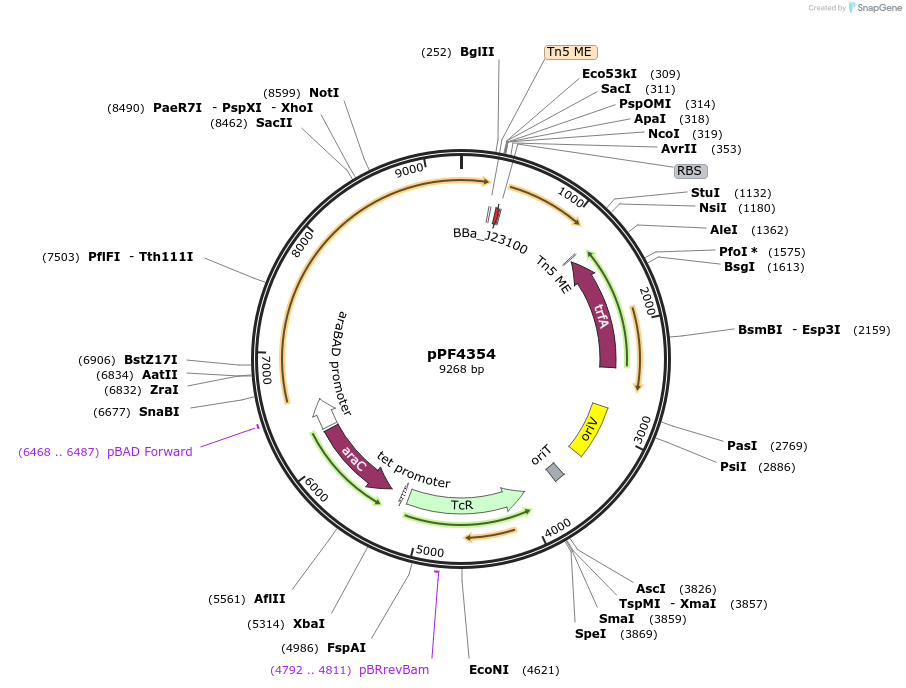

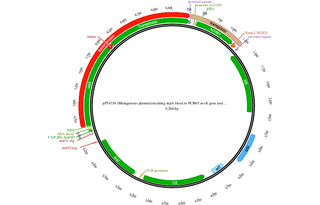

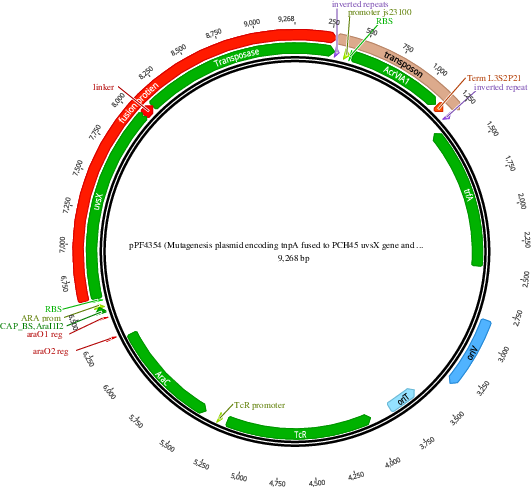

Map uploaded by the depositor.
