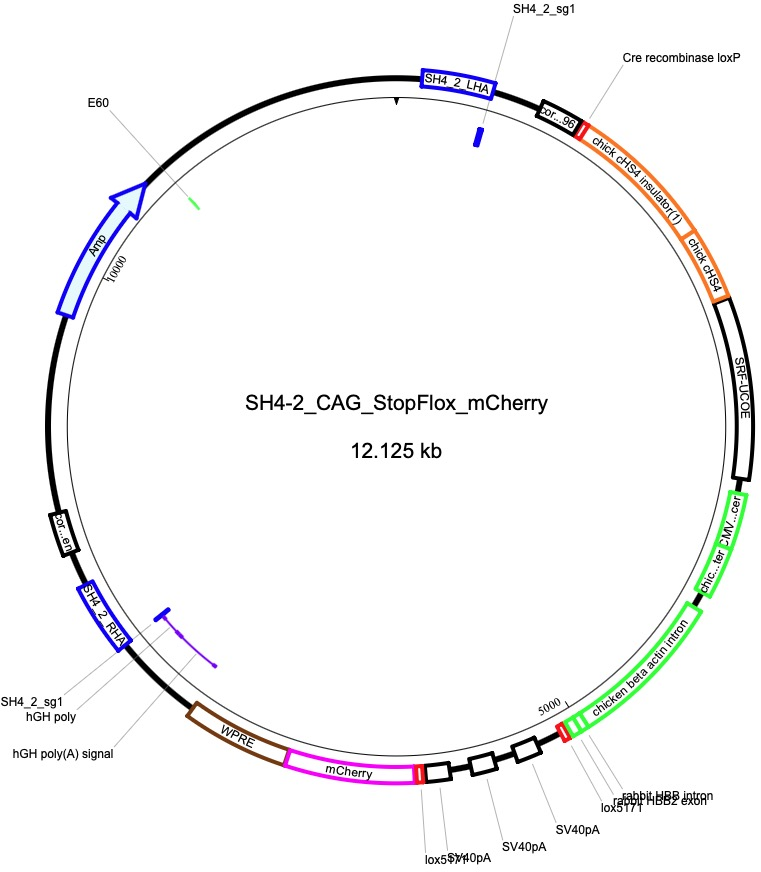

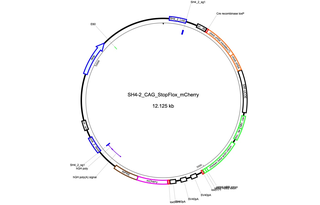

pSH4-2/Stop-flox-mCherry
(Plasmid
#260580)
-
PurposeSH4-2 donor plasmid encoding a CAG promoter, a loxP-flanked STOP cassette, and mCherry. Includes WPRE (Woodchuck Hepatitis Virus Posttranscriptional Regulatory Element) sequences.
-
Depositing Lab
-
Depositing OrganizationJackson Laboratory
Located in the United States of America -

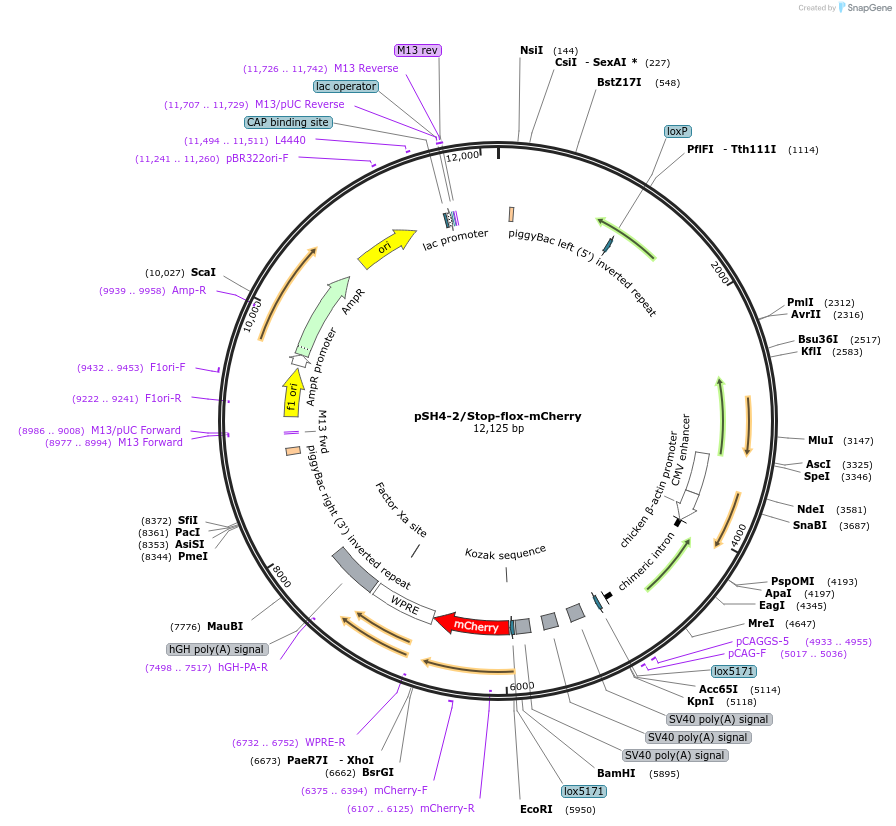

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 260580 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 260580-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 260580-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backboneSH4-2 Targeting Vector
-
Backbone manufacturerMarius Wernig, described by Uenaka et al. 2026, https://doi.org/10.1016/j.stem.2026.01.007
- Total vector size (bp) 12125
-
Modifications to backboneLoxStopLox mCherry cassette replaces mScarlet/mNeon Green
-
Vector typeMammalian Expression, Cre/Lox
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namemCherry
-
Insert Size (bp)711
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 260580-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 260580-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pSH4-2/Stop-flox-mCherry was a gift from Bill Skarnes (Addgene plasmid # 260580 ; http://n2t.net/addgene:260580 ; RRID:Addgene_260580) -
For your References section:
A Xeno-Free Protocol for Rapid Differentiation of Human iPSC-Derived Microglia from the KOLF2.1J Reference Line. Oliveira NAJ, Lewkowicz KR, Clow PA, Ward ME, Cookson MR, Skarnes WC, McDonough JA. Bioengineering (Basel). 2025 Dec 30;13(1):45. doi: 10.3390/bioengineering13010045. 10.3390/bioengineering13010045 PubMed 41595977
