OPN(-213)-luc
(Plasmid
#31107)
-
Depositing Lab
-
Depositing OrganizationUniversitaetsklinikum Essen
Located in Germany -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 31107 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 31107-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 31107-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepGL3-Basic
-
Backbone manufacturerPromega
- Backbone size w/o insert (bp) 4800
-
Vector typeMammalian Expression, Luciferase
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameosteopontin promoter
-
Alt nameSPP1
-
SpeciesH. sapiens (human)
-
Insert Size (bp)300
-
Mutationpromoter region -213 to +87
-
GenBank IDNM_000582
-
Entrez GeneSPP1 (a.k.a. BNSP, BSPI, ETA-1, OPN)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site SacI (not destroyed)
- 3′ cloning site XhoI (not destroyed)
- 5′ sequencing primer n/a
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
promoter luciferase reporter
Please note that there are some small discrepancies between Addgene's quality control sequence and the assembled sequence from the depositor. These discrepancies should not affect the function of the plasmid.
DNA (Catalog # 31107-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 31107-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
OPN(-213)-luc was a gift from Gerhart Ryffel (Addgene plasmid # 31107 ; http://n2t.net/addgene:31107 ; RRID:Addgene_31107) -
For your References section:
Identification of target genes of the transcription factor HNF1beta and HNF1alpha in a human embryonic kidney cell line. Senkel S, Lucas B, Klein-Hitpass L, Ryffel GU. Biochim Biophys Acta. 2005 Dec 20. 1731(3):179-90. 10.1016/j.bbaexp.2005.10.003 PubMed 16297991

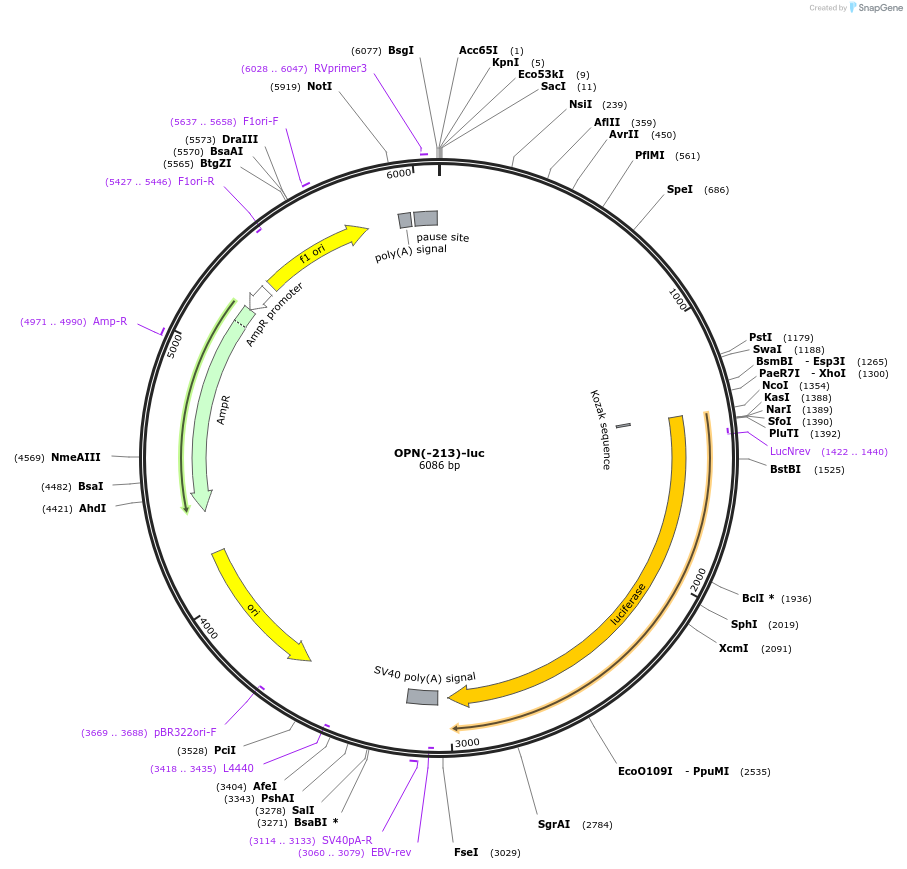

Map uploaded by the depositor.
