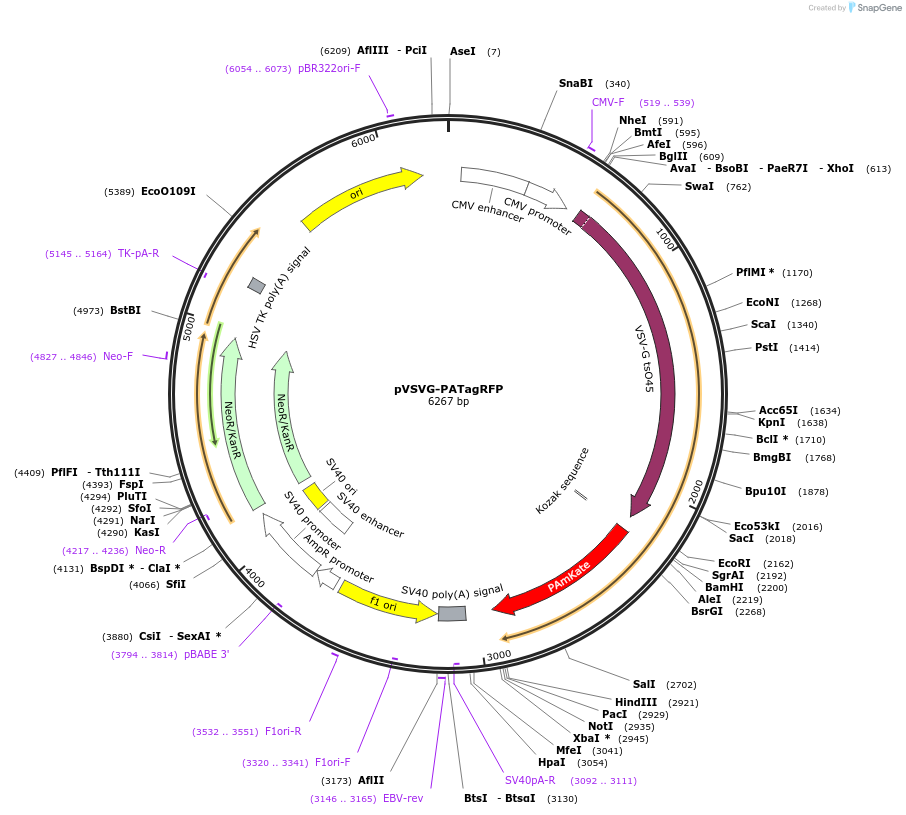

pVSVG-PATagRFP
(Plasmid #31947)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 31947 Standard format: Plasmid sent in bacteria as agar stab 1 $75

Currently unavailable outside the U.S.

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 5553
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PATagRFP
  • Alt name
    photoactivatable dark-to-red TagRFP red fluorescent protein
  • Insert Size (bp)
    714
  • Mutation
    R69S/F84W/Q139K/A147P/N148S/M151K/Y153K/S165V/H203R/R207I/V218W/C229S compared to TagRFP (but numbering relative to EGFP)
  • Promoter CMV
  • Tag / Fusion Protein
    • VSVG (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (unknown if destroyed)
  • 3′ cloning site NotI (unknown if destroyed)
  • 5′ sequencing primer cggtaggcgtgtacggtgggag
  • (Common Sequencing Primers)

Resource Information

Depositor Comments

Please note that this construct was used in the original publication for localization studies and not for producing virus.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pVSVG-PATagRFP was a gift from Vladislav Verkhusha (Addgene plasmid # 31947 ; http://n2t.net/addgene:31947 ; RRID:Addgene_31947)
  • For your References section:

    Bright monomeric photoactivatable red fluorescent protein for two-color super-resolution sptPALM of live cells. Subach FV, Patterson GH, Renz M, Lippincott-Schwartz J, Verkhusha VV. J Am Chem Soc. 2010 May 12;132(18):6481-91. 10.1021/ja100906g PubMed 20394363
