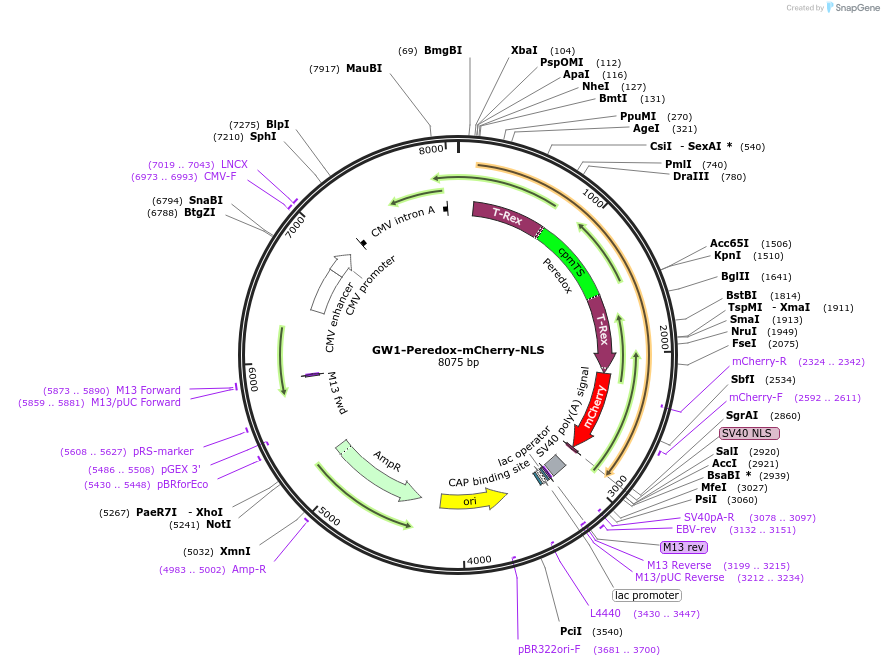

GW1-Peredox-mCherry-NLS
(Plasmid #32381)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 32381 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    GW1
  • Backbone manufacturer
    British Biotechnology
  • Backbone size w/o insert (bp) 5300
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Peredox-mCherry-NLS
  • Insert Size (bp)
    2800
  • Promoter CMV
  • Tag / Fusion Protein
    • Nuclear Localization Seq (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site PspOMI (not destroyed)
  • 3′ cloning site SalI (not destroyed)
  • 5′ sequencing primer CMV-f
  • 3′ sequencing primer SV40pA-R
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    GW1-Peredox-mCherry-NLS was a gift from Gary Yellen (Addgene plasmid # 32381 ; http://n2t.net/addgene:32381 ; RRID:Addgene_32381)
  • For your References section:

    Imaging Cytosolic NADH-NAD(+) Redox State with a Genetically Encoded Fluorescent Biosensor. Hung YP, Albeck JG, Tantama M, Yellen G. Cell Metab. 2011 Oct 5;14(4):545-54. 10.1016/j.cmet.2011.08.012 PubMed 21982714
