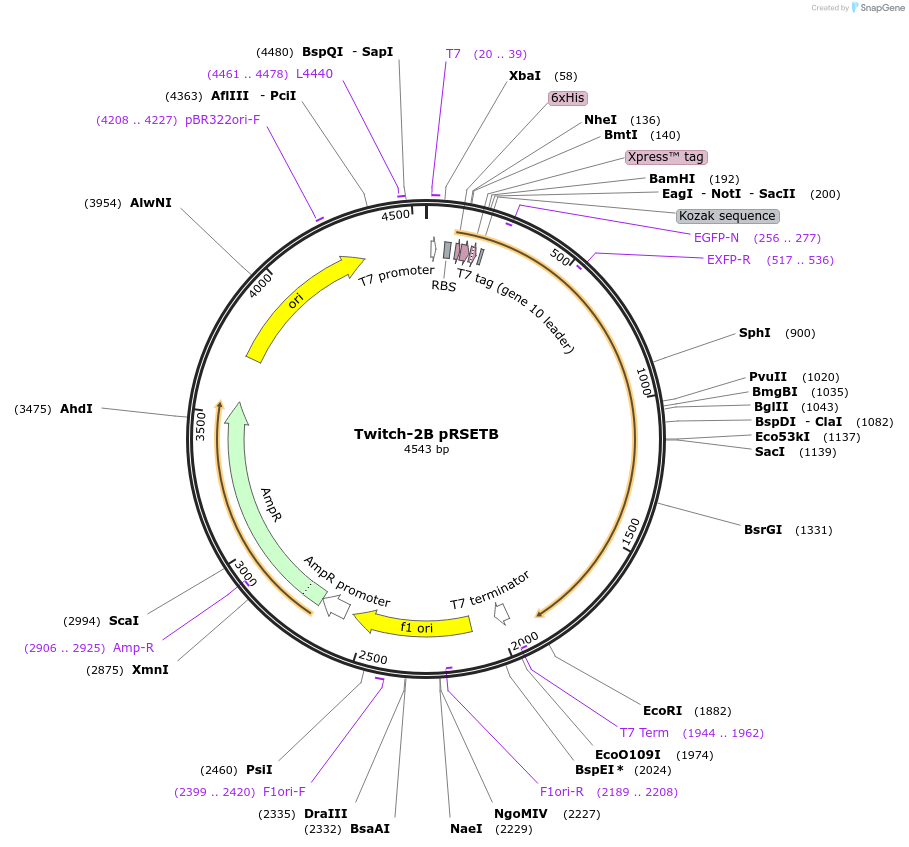

Twitch-2B pRSETB
(Plasmid #48203)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 48203 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pRSETB
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 2900
  • Total vector size (bp) 4571
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL1 Blue
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Twitch-2B
  • Alt name
    TW2B
  • Species
    Opsanus tau
  • Insert Size (bp)
    1671
  • Promoter T7
  • Tags / Fusion Proteins
    • 6xHIS (N terminal on backbone)
    • mCerulean3 (N terminal on insert)
    • cpVenusCD (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer ATGGTGAGCAAGGGCGAGGAG
  • 3′ sequencing primer cacaacattgaggattga
  • (Common Sequencing Primers)

Resource Information

Depositor Comments

Insert contains: BamHI-NotI-ECFP-SphI-TnC-SacI-YCP-EcoRI

There is a discrepancy in the publication, Plasmid 48203: Twitch-2B pRSETB and Plasmid 49531: Twitch-2B pcDNA3 are misidentified.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Twitch-2B pRSETB was a gift from Oliver Griesbeck (Addgene plasmid # 48203 ; http://n2t.net/addgene:48203 ; RRID:Addgene_48203)
  • For your References section:

    Optimized ratiometric calcium sensors for functional in vivo imaging of neurons and T lymphocytes. Thestrup T, Litzlbauer J, Bartholomaus I, Mues M, Russo L, Dana H, Kovalchuk Y, Liang Y, Kalamakis G, Laukat Y, Becker S, Witte G, Geiger A, Allen T, Rome LC, Chen TW, Kim DS, Garaschuk O, Griesinger C, Griesbeck O. Nat Methods. 2014 Jan 5. doi: 10.1038/nmeth.2773. 10.1038/nmeth.2773 PubMed 24390440
