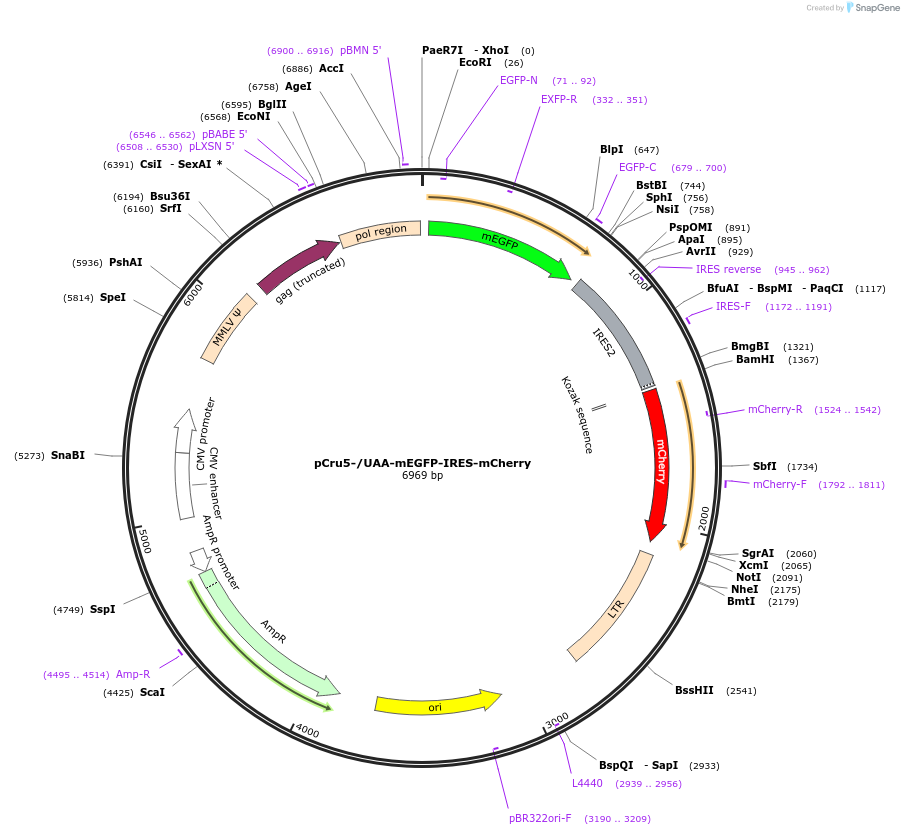

pCru5-/UAA-mEGFP-IRES-mCherry
(Plasmid #49225)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 49225 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pCru5
  • Total vector size (bp) 6969
  • Vector type
    Mammalian Expression, Retroviral, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Top10
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    mEGFP
  • Species
    Synthetic
  • Insert Size (bp)
    732
  • Promoter Viral LTR (or CMV)
  • Tag / Fusion Protein
    • SfuI site to create C-terminal fusions (C terminal on insert)

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site NsiI (not destroyed)
  • 5′ sequencing primer GGATACACGCCGCCCACGTG (5' to 3')
  • 3′ sequencing primer AGGGCGAGGGCGATGCCACCTA (5' to 3')
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    mCherry
  • Species
    Synthetic
  • Insert Size (bp)
    711
  • Promoter Viral LTR (or CMV)

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer GTCACCTTCAGCTTGGCGG (5' to 3')
  • 3′ sequencing primer ATGGCGTTACTTAAGCTAG (5' to 3')
  • (Common Sequencing Primers)

Resource Information

Depositor Comments

Vector allows for control of transgene expression at the level of translation. It is 1 vector in a set of 9 that spans a range of expression levels. Sequencing through any part of the IRES sequence is not advised. Expression of gene downstream of IRES remains constant, despite varying expression of gene upstream.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCru5-/UAA-mEGFP-IRES-mCherry was a gift from Clifford Wang (Addgene plasmid # 49225 ; http://n2t.net/addgene:49225 ; RRID:Addgene_49225)
  • For your References section:

    Tuning gene expression with synthetic upstream open reading frames. Ferreira JP, Overton KW, Wang CL. Proc Natl Acad Sci U S A. 2013 Jul 9;110(28):11284-9. doi: 10.1073/pnas.1305590110. Epub 2013 Jun 24. 10.1073/pnas.1305590110 PubMed 23798422
