Purpose5’ and 3’ EGFP fragments that shares 482bp were placed under ubiquitous CAG promoter. Used for validation of gRNA sequences by DSB mediated EGFP reconstitution.
-
Depositing Lab
-
Depositing OrganizationThe University of Osaka
Located in Japan -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 50716 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 50716-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 50716-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepCAGGS
- Backbone size w/o insert (bp) 5138
- Total vector size (bp) 6383
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namesplit EGFP
-
SpeciesSynthetic
-
Insert Size (bp)1239
- Promoter CAG
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site XbaI (not destroyed)
- 3′ cloning site XhoI (not destroyed)
- 5′ sequencing primer GCCTTCTTCT TTTTCCTACA GC
- 3′ sequencing primer GCCACACCAG CCACCACCTT CTG
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made bypCAGGS is from Dr. Junichi Miyazaki, original inventor. EGFP was from clontech.
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 50716-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 50716-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCAG-EGxxFP was a gift from Masahito Ikawa (Addgene plasmid # 50716 ; http://n2t.net/addgene:50716 ; RRID:Addgene_50716) -
For your References section:
Generation of mutant mice by pronuclear injection of circular plasmid expressing Cas9 and single guided RNA. Mashiko D, Fujihara Y, Satouh Y, Miyata H, Isotani A, Ikawa M. Sci Rep. 2013 Nov 27;3:3355. doi: 10.1038/srep03355. 10.1038/srep03355 PubMed 24284873

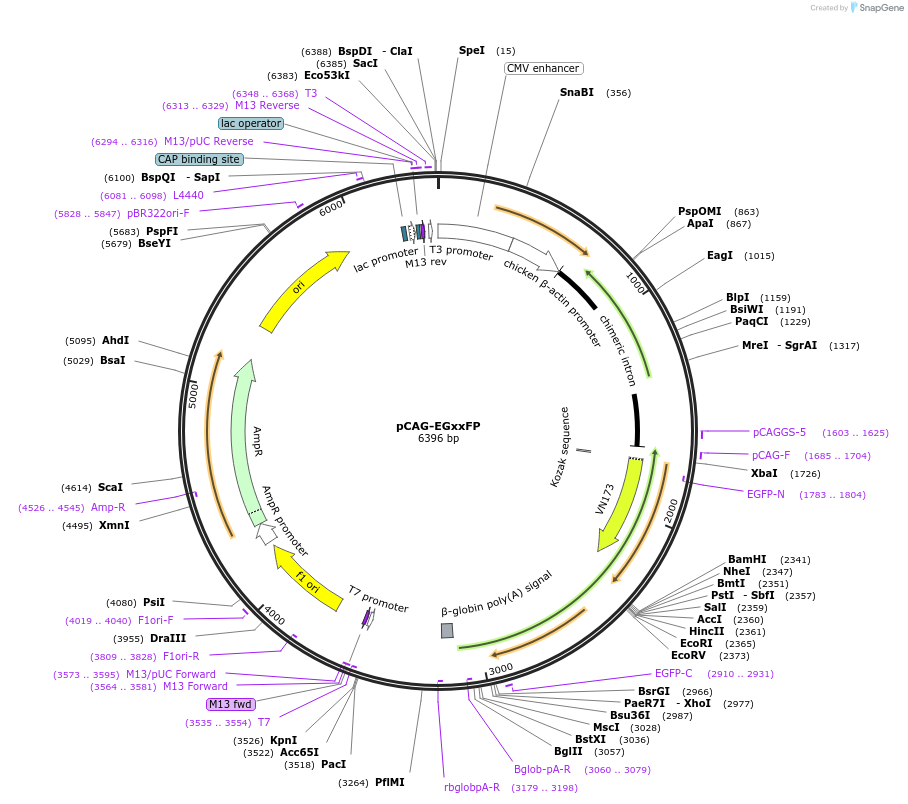

Map uploaded by the depositor.
