pCMV CEPIA4mt
(Plasmid #58220)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 58220 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 58220-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 58220-D100 100 μg of DNA in Tris buffer $585
Add to Cart

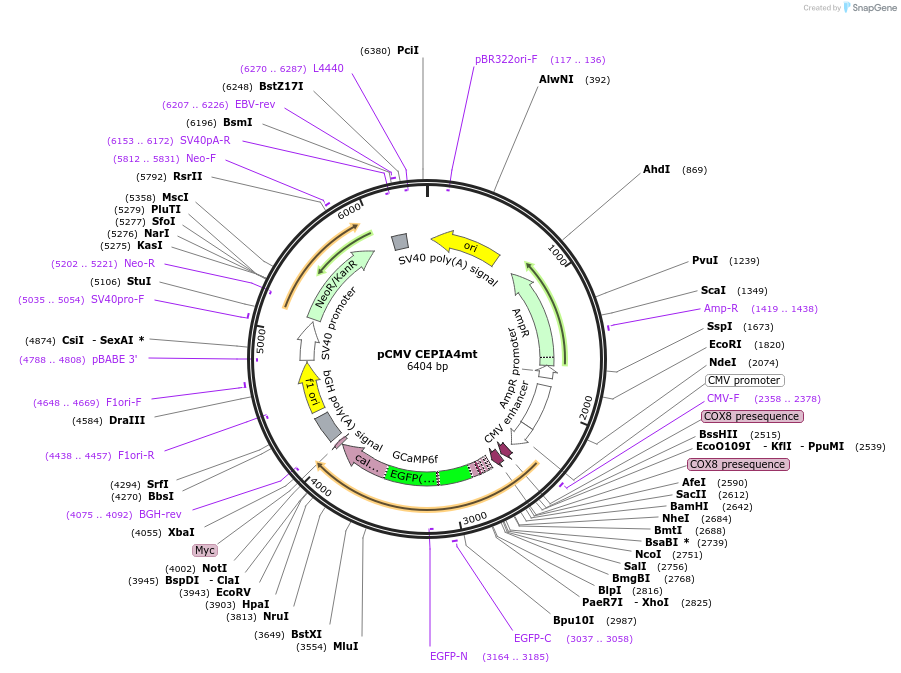

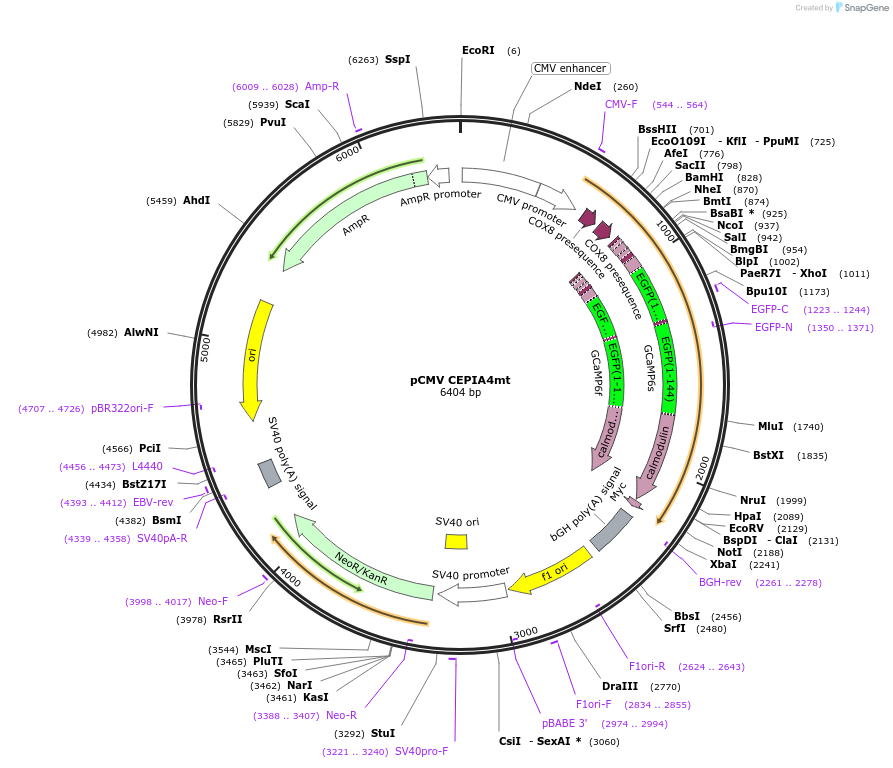

Backbone

  • Vector backbone
    pCMV/myc/mito
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 4799
  • Total vector size (bp) 6404
  • Modifications to backbone
    Duplicate mitochondria targeting sequence.
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Stbl3
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CEPIA4mt
  • Alt name
    green fluorescent calcium-measuring organelle-entrapped protein indicator for the mitochondria (low affinity variant)
  • Species
    Synthetic
  • Insert Size (bp)
    1605
  • Mutation
    GCaMP2 N263Y E282V E334D M339L F395W D436E
  • Promoter CMV
  • Tag / Fusion Protein
    • myc (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site None (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer cgcaaatgggcggtaggcgtg
  • 3′ sequencing primer tagaaggcacagtcgagg-
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCMV CEPIA4mt was a gift from Masamitsu Iino (Addgene plasmid # 58220 ; http://n2t.net/addgene:58220 ; RRID:Addgene_58220)

  • For your References section:

    Imaging intraorganellar Ca(2+) at subcellular resolution using CEPIA. Suzuki J, Kanemaru K, Ishii K, Ohkura M, Okubo Y, Iino M. Nat Commun. 2014 Jun 13;5:4153. doi: 10.1038/ncomms5153. 10.1038/ncomms5153 PubMed 24923787
