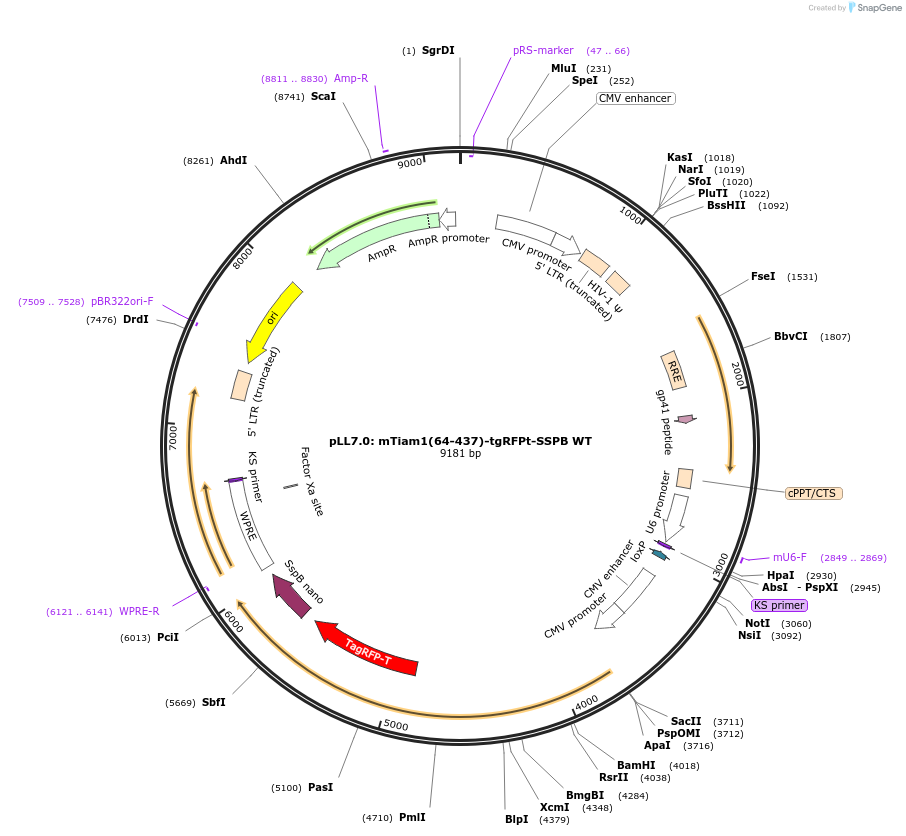

pLL7.0: mTiam1(64-437)-tgRFPt-SSPB WT
PurposeMammalian Expression of Tiam DH/PH-tgRFPt-Nano
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||60417||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.
Vector typeMammalian Expression, Lentiviral, Cre/Lox
Growth in Bacteria
Bacterial Resistance(s)Ampicillin, 100 μg/mL
Copy numberHigh Copy
SpeciesM. musculus (mouse), Synthetic
Insert Size (bp)2289
- Promoter CMV
- Cloning method Restriction Enzyme
- 5′ cloning site ApaI (not destroyed)
- 3′ cloning site PciI (not destroyed)
- 5′ sequencing primer None
- 3′ sequencing primer CAGCAACCAGGATTTATACAAGG (Common Sequencing Primers)
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pLL7.0: mTiam1(64-437)-tgRFPt-SSPB WT was a gift from Brian Kuhlman (Addgene plasmid # 60417)
For your References section:Engineering an improved light-induced dimer (iLID) for controlling the localization and activity of signaling proteins. Guntas G, Hallett RA, Zimmerman SP, Williams T, Yumerefendi H, Bear JE, Kuhlman B. Proc Natl Acad Sci U S A. 2015 Jan 6;112(1):112-7. doi: 10.1073/pnas.1417910112. Epub 2014 Dec 22. 10.1073/pnas.1417910112 PubMed 25535392
