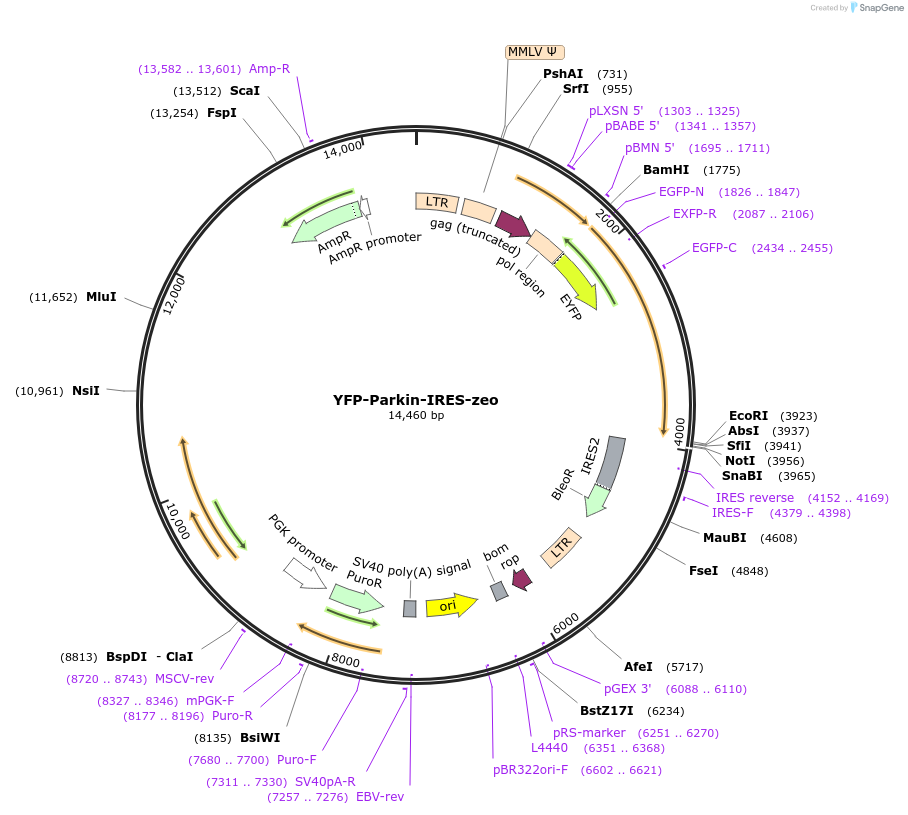

YFP-Parkin-IRES-zeo
(Plasmid #61728)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 61728 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 61728-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 61728-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    LZRS
  • Vector type
    Mammalian Expression
  • Selectable markers
    Zeocin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    Stbl2
  • Growth instructions
    Slow growing. May need additional incubation time.
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Parkin
  • Alt name
    Park 2
  • Species
    H. sapiens (human)
  • GenBank ID
    NM_004562
  • Entrez Gene
    PRKN (a.k.a. AR-JP, LPRS2, PARK2, PDJ)
  • Tag / Fusion Protein
    • eYFP (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (unknown if destroyed)
  • 3′ cloning site EcoRI (unknown if destroyed)
  • 5′ sequencing primer EGFP-C
  • 3′ sequencing primer pCDH-Rev
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Dr. Richard Youle provided YFP-Parkin (Addgene Plasmid 23955). Please note that the EBNA sequence may have ambiguous bases due to GC-rich regions.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    YFP-Parkin-IRES-zeo was a gift from Douglas Green & Stephen Tait (Addgene plasmid # 61728 ; http://n2t.net/addgene:61728 ; RRID:Addgene_61728)

  • For your References section:

    Widespread mitochondrial depletion via mitophagy does not compromise necroptosis. Tait SW, Oberst A, Quarato G, Milasta S, Haller M, Wang R, Karvela M, Ichim G, Yatim N, Albert ML, Kidd G, Wakefield R, Frase S, Krautwald S, Linkermann A, Green DR. Cell Rep. 2013 Nov 27;5(4):878-85. doi: 10.1016/j.celrep.2013.10.034. Epub 2013 Nov 21. 10.1016/j.celrep.2013.10.034 PubMed 24268776
