MXS_tdTomato
(Plasmid
#62407)
-
PurposeMXS_chaining vector with tdTomato
-
Depositing Lab
-
Depositing OrganizationEuropean Molecular Biology Laboratory (EMBL), Heidelberg
Located in Germany -

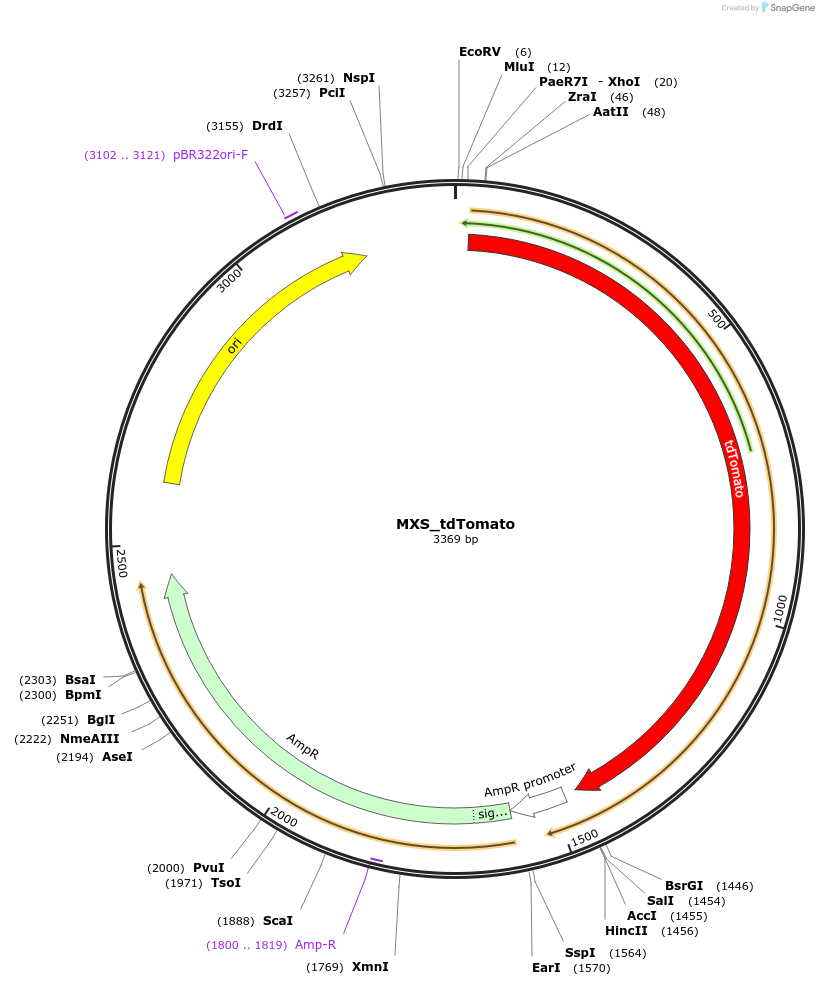

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 62407 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 62407-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 62407-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backboneMXS_chaining vector
-
Backbone manufacturerNeveu lab, Addgene plasmid #62394
- Backbone size w/o insert (bp) 1945
-
Vector typeSynthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Mach1
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nametdTomato
-
SpeciesSynthetic
-
Insert Size (bp)1446
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site MluI (not destroyed)
- 3′ cloning site SalI (not destroyed)
- 5′ sequencing primer TTACCGCCTTTGAGTGAG
- 3′ sequencing primer TTGTCTCATGAGCGGATAC
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 62407-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 62407-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
MXS_tdTomato was a gift from Pierre Neveu (Addgene plasmid # 62407 ; http://n2t.net/addgene:62407 ; RRID:Addgene_62407) -
For your References section:
MXS-Chaining: A Highly Efficient Cloning Platform for Imaging and Flow Cytometry Approaches in Mammalian Systems. Sladitschek HL, Neveu PA. PLoS One. 2015 Apr 24;10(4):e0124958. doi: 10.1371/journal.pone.0124958. eCollection 2015. 10.1371/journal.pone.0124958 PubMed 25909630
