PurposeHuman expression vector for SpCas9 VRER variant: CMV-T7-humanSpCas9(D1135V/G1218R/R1335E/T1337R)-NLS-3xFLAG (VRER variant)
-
Depositing Lab
-
Depositing OrganizationMassachusetts General Hospital
Located in United States of America -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 65773 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 65773-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 65773-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backboneJDS246
-
Backbone manufacturerJoung lab (Addgene Plasmid # 43861)
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)XL1 Blue
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemammalian codon-optimized Streptococcus pyogenes Cas9 (D1135V/G1218R/R1335E/T1337R)-NLS-3XFlag
-
MutationD1135V, G1218R, R1335E, and T1337R mutations in Cas9
- Promoter CMV & T7
-
Tags
/ Fusion Proteins
- NLS (C terminal on insert)
- 3x FLAG (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV-F
- 3′ sequencing primer BGH-rev
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 65773-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 65773-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
MSP1101 was a gift from Keith Joung (Addgene plasmid # 65773 ; http://n2t.net/addgene:65773 ; RRID:Addgene_65773) -
For your References section:
Engineered CRISPR-Cas9 nucleases with altered PAM specificities. Kleinstiver BP, Prew MS, Tsai SQ, Topkar VV, Nguyen NT, Zheng Z, Gonzales AP, Li Z, Peterson RT, Yeh JJ, Aryee MJ, Joung JK. Nature. 2015 Jun 22. doi: 10.1038/nature14592. 10.1038/nature14592 PubMed 26098369

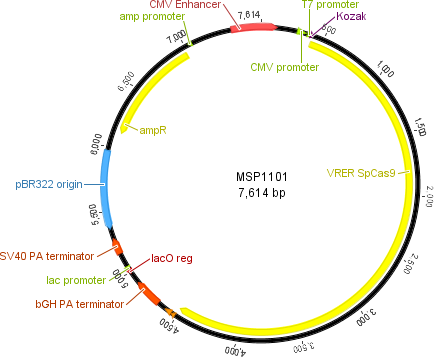

Map uploaded by the depositor.
