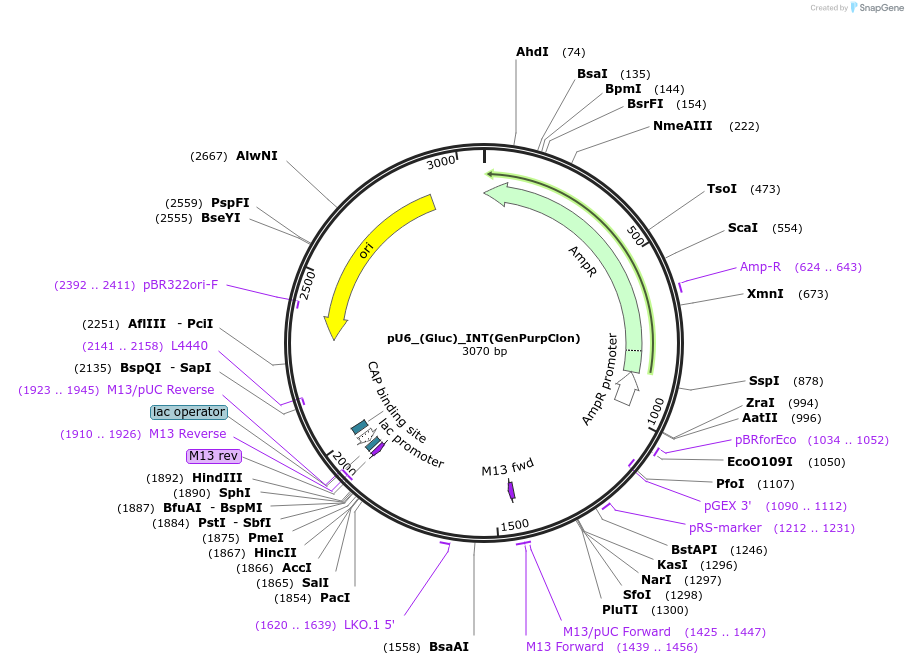

pU6_(Gluc)_INT(GenPurpClon)
(Plasmid #68433)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 68433 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pNEB193
  • Backbone manufacturer
    NEB
  • Vector type
    Mammalian Expression, CRISPR ; Cloning vector for generating INT-like constructs

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    INT construct
  • gRNA/shRNA sequence
    gRNA: GATCTAGATACGACTCACTAT
  • Species
    Synthetic
  • Promoter human U6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)
  • 3′ cloning site Unknown (unknown if destroyed)
  • 5′ sequencing primer LKO.1 5
  • 3′ sequencing primer M13R
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

sgRNA targets the (ATCTAGATACGACTCACTAT) sequence in the Gluc reporter. Contains an internal cloning site into which "accessory domain," can be inserted. Cut with BbsI. More details outlined in the Online Methods section.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pU6_(Gluc)_INT(GenPurpClon) was a gift from John Rinn (Addgene plasmid # 68433 ; http://n2t.net/addgene:68433 ; RRID:Addgene_68433)
  • For your References section:

    Multiplexable, locus-specific targeting of long RNAs with CRISPR-Display. Shechner DM, Hacisuleyman E, Younger ST, Rinn JL. Nat Methods. 2015 Jul;12(7):664-70. doi: 10.1038/nmeth.3433. Epub 2015 Jun 1. 10.1038/nmeth.3433 PubMed 26030444
