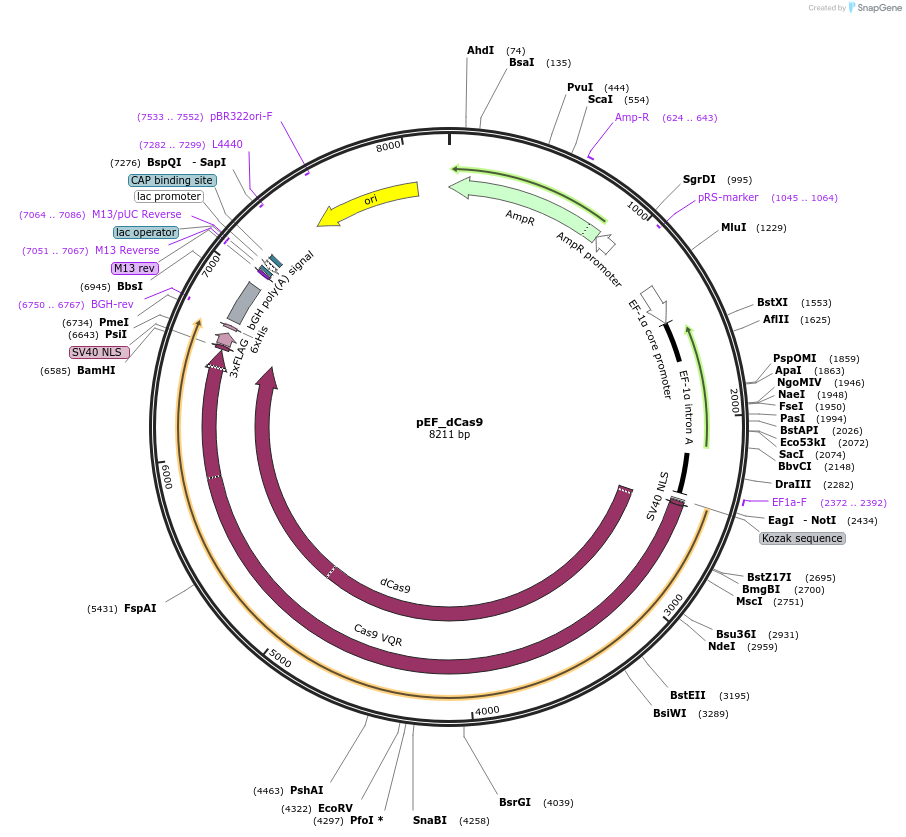

pEF_dCas9
(Plasmid #68416)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 68416 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pNEB193
  • Backbone manufacturer
    NEB
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    dCas9
  • Mutation
    D10A/H841A
  • Promoter human EF1[alpha]
  • Tag / Fusion Protein
    • 3xFLAG (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)
  • 3′ cloning site Unknown (unknown if destroyed)
  • 5′ sequencing primer EF-1a-F
  • 3′ sequencing primer BGH-rev
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Contains NLS sequences at the N- and C-terminus of the dCas9 protein. The C-terminal NLS immediately preceedes the 3xFLAG tag

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEF_dCas9 was a gift from John Rinn (Addgene plasmid # 68416 ; http://n2t.net/addgene:68416 ; RRID:Addgene_68416)
  • For your References section:

    Multiplexable, locus-specific targeting of long RNAs with CRISPR-Display. Shechner DM, Hacisuleyman E, Younger ST, Rinn JL. Nat Methods. 2015 Jul;12(7):664-70. doi: 10.1038/nmeth.3433. Epub 2015 Jun 1. 10.1038/nmeth.3433 PubMed 26030444
