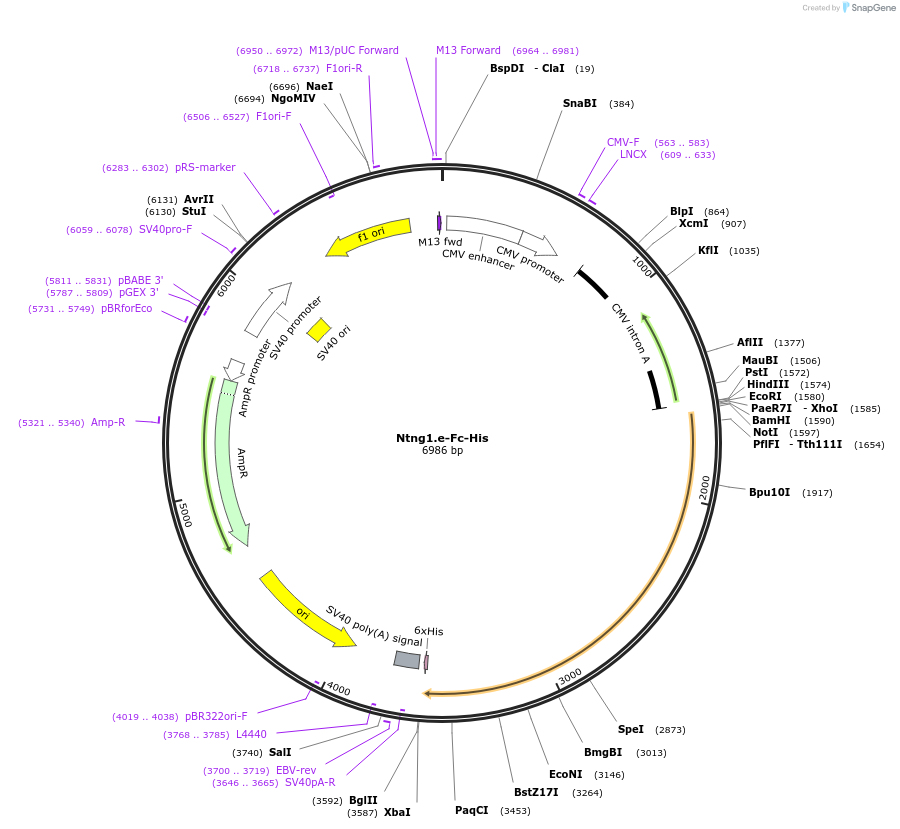

Ntng1.e-Fc-His
(Plasmid #72114)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 72114 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Ntng1.e
  • Alt name
    Netrin G1, isoform e; Lmnt1
  • Alt name
    NCBI gene ID 80883; Reference sequence NM_133488.1
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    1263
  • Entrez Gene
    Ntng1 (a.k.a. A930010C08Rik, AI853992, Lmnt1)
  • Promoter CMV
  • Tag / Fusion Protein
    • Fc-His (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NotI (not destroyed)
  • 3′ cloning site SpeI (not destroyed)
  • 5′ sequencing primer GTCAGAGGTAACTCCCGTTGC
  • 3′ sequencing primer ATCATGAGGGTGTCCTTG
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Ntng1.e-Fc-His was a gift from Woj Wojtowicz (Addgene plasmid # 72114 ; http://n2t.net/addgene:72114 ; RRID:Addgene_72114)
  • For your References section:

    An extracellular biochemical screen reveals that FLRTs and Unc5s mediate neuronal subtype recognition in the retina. Visser JJ, Cheng Y, Perry SC, Chastain AB, Parsa B, Masri SS, Ray TA, Kay JN, Wojtowicz WM. Elife. 2015 Dec 3;4. pii: e08149. doi: 10.7554/eLife.08149. 10.7554/eLife.08149 PubMed 26633812
