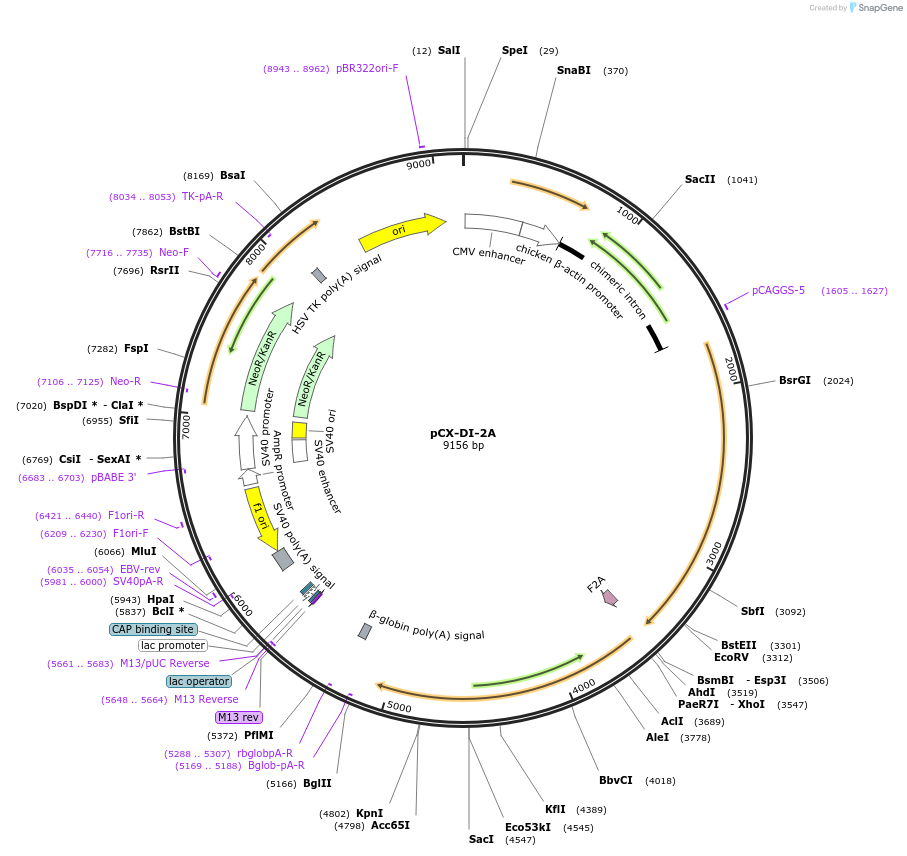

pCX-DI-2A
(Plasmid #74671)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 74671 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pCX-2A-2A
  • Backbone manufacturer
    Giovannoni lab, Addgene plasmid 74670
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert 1

  • Gene/Insert name
    CD73
  • Species
    H. sapiens (human)
  • Entrez Gene
    NT5E (a.k.a. CALJA, CD73, E5NT, NT, NT5, NTE, eN, eNT)
  • Promoter pCAGGS
  • Tag / Fusion Protein
    • F2A (C terminal on backbone)

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer pCAX-F CAGCTCCTGGGCAACGTGC
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    CD39
  • Species
    H. sapiens (human)
  • Entrez Gene
    ENTPD1 (a.k.a. ATPDase, CD39, NTPDase-1, SPG64)

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer unknown
  • 3′ sequencing primer M13R
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    NT5E (hCD73) sequence was kindly provided by Dr. Jozef Spychala at University of Michigan, Ann Arbor. ENTPD1 (hCD39) sequence was kindly provided by Dr. Simon Robson at Harvard Medical School, Boston.
  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry

Depositor Comments

Additional details can be found in the following publication:
Simultaneous overexpression of human E5NT and ENTPD1 protects porcine endothelial cells against H2O2-induced oxidative stress and cytotoxicity in vitro. Free Radic Biol Med. 2017 Jul;108:320-333. doi: 10.1016/j.freeradbiomed.2017.03.038.
PMID: 28389406

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCX-DI-2A was a gift from Roberto Giovannoni (Addgene plasmid # 74671 ; http://n2t.net/addgene:74671 ; RRID:Addgene_74671)
  • For your References section:

    Functional analysis of expression of human ecto-nucleoside triphosphate diphosphohydrolase-1 and/or ecto-5'-nucleotidase in pig endothelial cells. De Giorgi M, Pelikant-Malecka I, Sielicka A, Slominska EM, Giovannoni R, Cinti A, Cerrito MG, Lavitrano M, Smolenski RT. Nucleosides Nucleotides Nucleic Acids. 2014;33(4-6):313-8. doi: 10.1080/15257770.2014.896466. 10.1080/15257770.2014.896466 PubMed 24940685
