PurposeTransposon-propagation plasmid for Mu-BsaI modified transposon
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 79769 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepUC19
- Backbone size w/o insert (bp) 2086
- Total vector size (bp) 3340
-
Modifications to backboneSwap our AmpR, put in KanR
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameMu-BsaI
-
Insert Size (bp)1254
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsmBI (destroyed during cloning)
- 3′ cloning site BsmBI (destroyed during cloning)
- 5′ sequencing primer GTTGTGTGGAATTGTGA
- 3′ sequencing primer GGAGCAGACAAGCCCGTCAGGG (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUCKanR-Mu-BsaI was a gift from David Savage (Addgene plasmid # 79769 ; http://n2t.net/addgene:79769 ; RRID:Addgene_79769) -
For your References section:
Rapid construction of metabolite biosensors using domain-insertion profiling. Nadler DC, Morgan SA, Flamholz A, Kortright KE, Savage DF. Nat Commun. 2016 Jul 29;7:12266. doi: 10.1038/ncomms12266. 10.1038/ncomms12266 PubMed 27470466

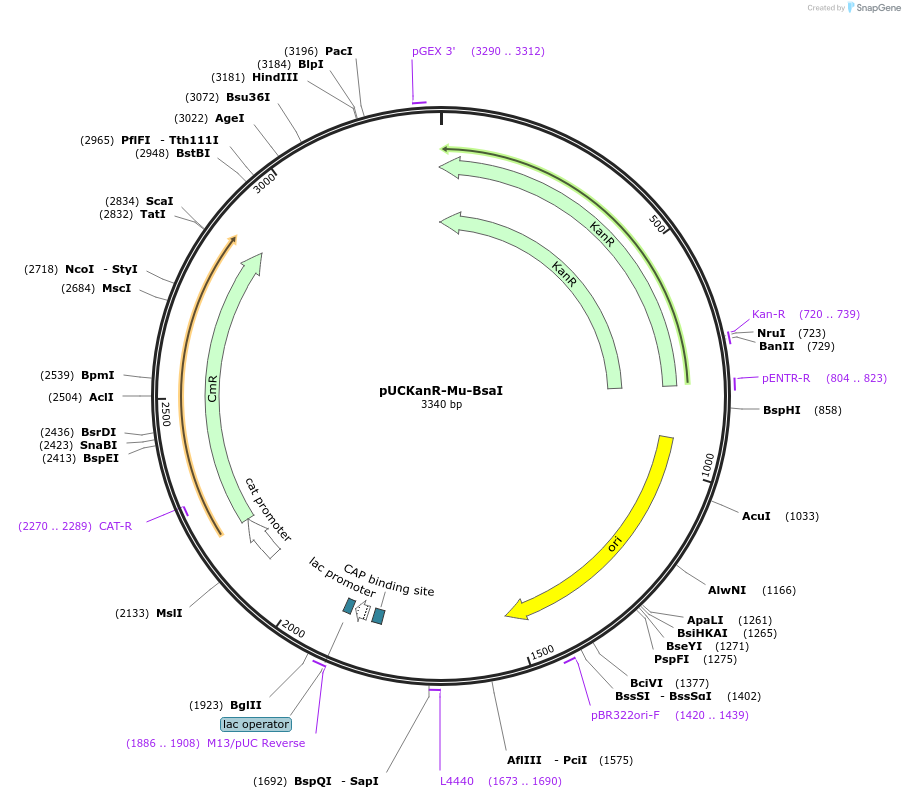

Map uploaded by the depositor.
