pMA-SpCas9-g2
(Plasmid #80785)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 80785 Standard format: Plasmid sent in bacteria as agar stab 1 $85

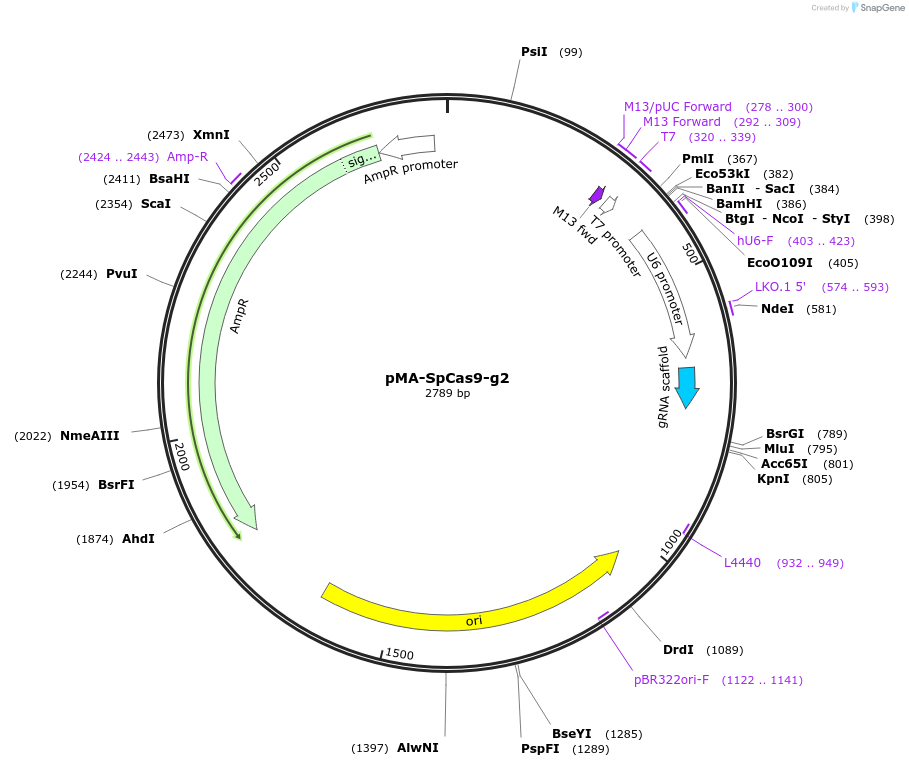

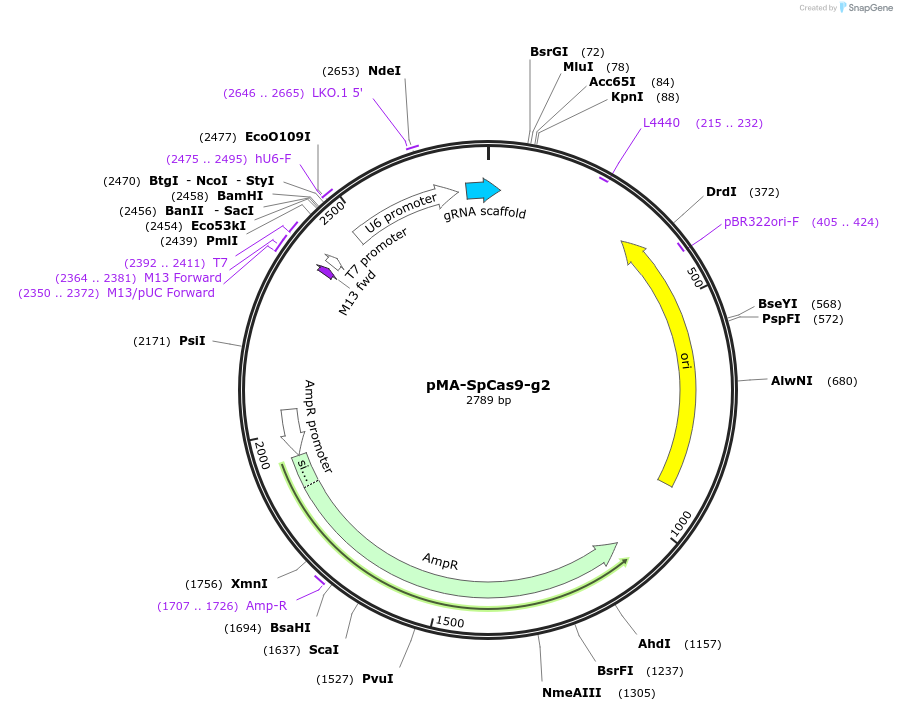

Backbone

  • Vector backbone
    pMA15
  • Backbone manufacturer
    Lifetechnologies
  • Backbone size w/o insert (bp) 2380
  • Total vector size (bp) 2789
  • Modifications to backbone
    no
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CRISPR gRNA expression cassette (for SpCas9)
  • gRNA/shRNA sequence
    empty (BbsI)
  • Species
    Synthetic
  • Promoter U6
  • Tag / Fusion Protein
    • na

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site bamHI (not destroyed)
  • 3′ cloning site BsrGI (not destroyed)
  • 5′ sequencing primer TAATACGACTCACTATAGG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pMA-SpCas9-g2 was a gift from Yonglun Luo (Addgene plasmid # 80785 ; http://n2t.net/addgene:80785 ; RRID:Addgene_80785)
  • For your References section:

    Golden Gate Assembly of CRISPR gRNA expression array for simultaneously targeting multiple genes. Vad-Nielsen J, Lin L, Bolund L, Nielsen AL, Luo Y. Cell Mol Life Sci. 2016 May 13. 10.1007/s00018-016-2271-5 [pii] PubMed 27178736
