Purposefor in vitro transcription of Cas9 with polyA tail encoded
-
Depositing Lab
-
Depositing OrganizationMax-Delbrueck-Centrum fuer Molekulare Medizin (MDC)
Located in Germany -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 84918 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 84918-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 84918-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepCAG
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameCas9
-
SpeciesS. pyogenes
- Promoter CAG
-
Tags
/ Fusion Proteins
- NLS (N terminal on insert)
- Flag (N terminal on insert)
- NLS (C terminal on insert)
- polyA tail (C terminal on insert)
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer T7
- 3′ sequencing primer M13F20
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 84918-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 84918-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCAG-Cas9-162A was a gift from Ralf Kuehn (Addgene plasmid # 84918 ; http://n2t.net/addgene:84918 ; RRID:Addgene_84918) -
For your References section:
Efficient generation of Rosa26 knock-in mice using CRISPR/Cas9 in C57BL/6 zygotes. Chu VT, Weber T, Graf R, Sommermann T, Petsch K, Sack U, Volchkov P, Rajewsky K, Kuhn R. BMC Biotechnol. 2016 Jan 16;16(1):4. doi: 10.1186/s12896-016-0234-4. 10.1186/s12896-016-0234-4 PubMed 26772810

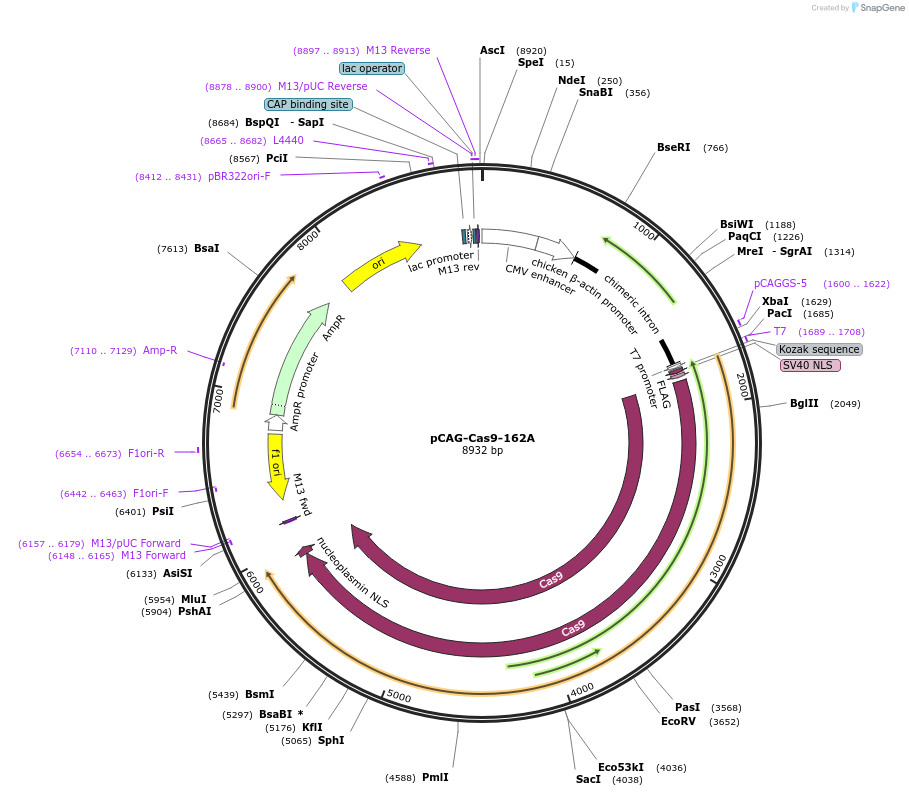

Map uploaded by the depositor.
