pPBX1-318
(Plasmid #8589)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 8589 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

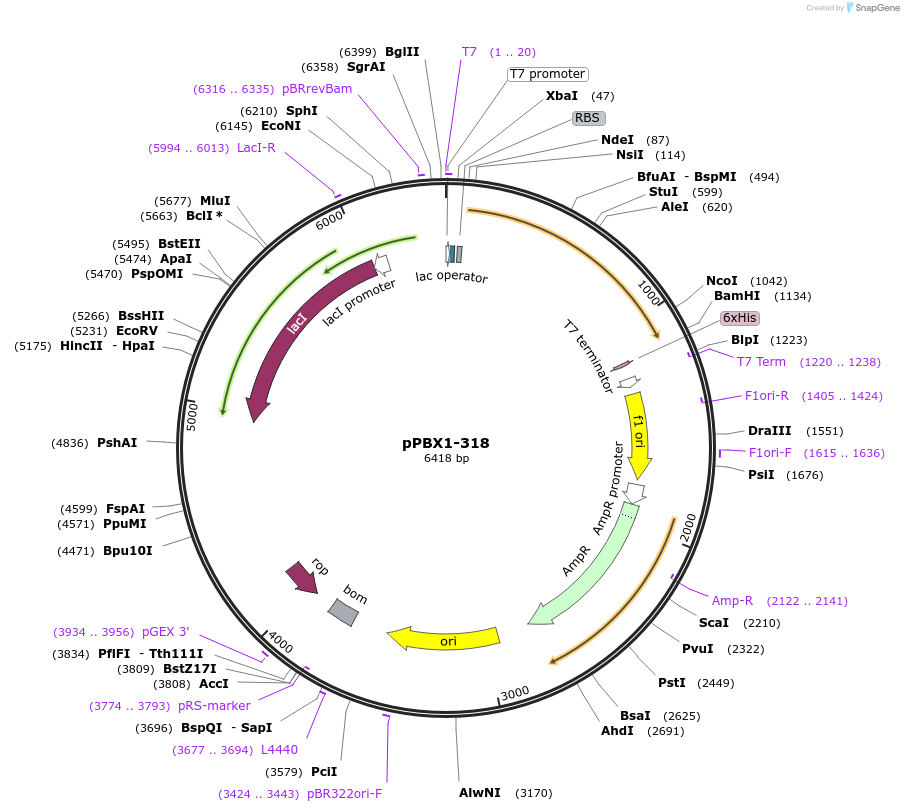

Backbone

  • Vector backbone
    PET21b
  • Backbone manufacturer
    Novagen
  • Backbone size w/o insert (bp) 5443
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Human pbx (1-318)
  • Alt name
    PBX1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    954
  • Entrez Gene
    PBX1 (a.k.a. CAKUHED)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer T7
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pPBX1-318 was a gift from Cynthia Wolberger (Addgene plasmid # 8589 ; http://n2t.net/addgene:8589 ; RRID:Addgene_8589)
  • For your References section:

    Structure of HoxA9 and Pbx1 bound to DNA: Hox hexapeptide and DNA recognition anterior to posterior. LaRonde-LeBlanc NA, Wolberger C. Genes Dev 2003 Aug 15;17(16):2060-72. 10.1101/gad.1103303 PubMed 12923056
