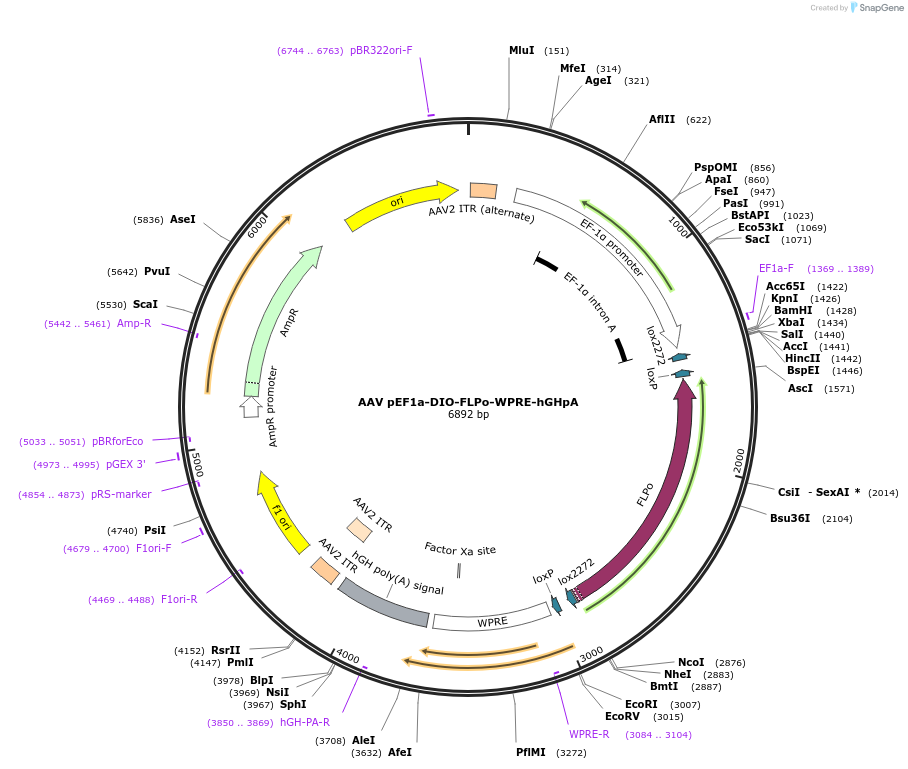

AAV pEF1a-DIO-FLPo-WPRE-hGHpA
(Plasmid #87306)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 87306 Standard format: Plasmid sent in bacteria as agar stab 1 $75
AAV1 87306-AAV1 Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid.
$380
AAV2 87306-AAV2 Virus (100 µL at titer ≥ 5×10¹² vg/mL) and Plasmid.
$380
AAV5 87306-AAV5 Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid.
$380
AAV Retrograde 87306-AAVrg Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid.
$380

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pAAV
  • Backbone manufacturer
    Stratagene
  • Backbone size w/o insert (bp) 5601
  • Total vector size (bp) 6892
  • Modifications to backbone
    Modified from Addgene plasmid #20297 and #51669.
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Cre-dependent mouse codon-optimized Flp recombinase.
  • Alt name
    DIO-FLPo
  • Species
    M. musculus (mouse), S. cerevisiae (budding yeast), Synthetic
  • Insert Size (bp)
    1299
  • Promoter EF1a
  • Tag / Fusion Protein
    • N/A

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site AscI (not destroyed)
  • 5′ sequencing primer AGCTGACAGGTGGTGGCAAT
  • 3′ sequencing primer TCAAGCCTCAGACAGTGGTTC
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Modification of Addgene items 20297 (pAAV-EF1a-double floxed-hChR2(H134R)-mCherry-WPRE-HGHpA) and 51669 (AAV phSyn1(S)-FlpO-bGHpA).
  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry
  • Articles Citing this Plasmid

Information for AAV1 (Catalog # 87306-AAV1) ( Back to top )

Purpose

Ready-to-use AAV1 particles produced from AAV pEF1a-DIO-FLPo-WPRE-hGHpA (#87306). In addition to the viral particles, you will also receive purified AAV pEF1a-DIO-FLPo-WPRE-hGHpA plasmid DNA.

EF1a-driven, Cre dependent expression of the site-specific recombinase FlpO. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV1 cap gene
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV1
  • Purification Iodixanol gradient ultracentrifugation

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Resource Information

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV2 (Catalog # 87306-AAV2) ( Back to top )

Purpose

Ready-to-use AAV2 particles produced from AAV pEF1a-DIO-FLPo-WPRE-hGHpA (#87306). In addition to the viral particles, you will also receive purified AAV pEF1a-DIO-FLPo-WPRE-hGHpA plasmid DNA.

EF1a-driven, Cre dependent expression of the site-specific recombinase FlpO. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 5×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV2 cap gene
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV2
  • Purification Iodixanol gradient ultracentrifugation

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Resource Information

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV5 (Catalog # 87306-AAV5) ( Back to top )

Purpose

Ready-to-use AAV5 particles produced from AAV pEF1a-DIO-FLPo-WPRE-hGHpA (#87306). In addition to the viral particles, you will also receive purified AAV pEF1a-DIO-FLPo-WPRE-hGHpA plasmid DNA.

EF1a-driven, Cre dependent expression of the site-specific recombinase FlpO. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV5 cap gene
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV5
  • Purification Iodixanol gradient ultracentrifugation

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Resource Information

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV Retrograde (Catalog # 87306-AAVrg) ( Back to top )

Purpose

Ready-to-use AAV Retrograde particles produced from AAV pEF1a-DIO-FLPo-WPRE-hGHpA (#87306). In addition to the viral particles, you will also receive purified AAV pEF1a-DIO-FLPo-WPRE-hGHpA plasmid DNA.

EF1a-driven, Cre dependent expression of the site-specific recombinase FlpO. These AAV were produced with a retrograde serotype, which permits retrograde access to projection neurons. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV retrograde cap gene from rAAV2-retro helper (plasmid #81070)
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV retrograde (AAVrg)
  • Purification Iodixanol gradient ultracentrifugation

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Resource Information

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Retrograde functionality is dependent on high viral titers. Addgene recommends not diluting your AAV preps prior to use.

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    AAV pEF1a-DIO-FLPo-WPRE-hGHpA was a gift from Li Zhang (Addgene plasmid # 87306 ; http://n2t.net/addgene:87306 ; RRID:Addgene_87306)

    For viral preps, please replace (Addgene plasmid # 87306) in the above sentence with: (Addgene viral prep # 87306-AAV1), (Addgene viral prep # 87306-AAV2), (Addgene viral prep # 87306-AAV5), or (Addgene viral prep # 87306-AAVrg)

  • For your References section:

    AAV-Mediated Anterograde Transsynaptic Tagging: Mapping Corticocollicular Input-Defined Neural Pathways for Defense Behaviors. Zingg B, Chou XL, Zhang ZG, Mesik L, Liang F, Tao HW, Zhang LI. Neuron. 2017 Jan 4;93(1):33-47. doi: 10.1016/j.neuron.2016.11.045. Epub 2016 Dec 15. 10.1016/j.neuron.2016.11.045 PubMed 27989459
