CFP-PCRD-FRB
(Plasmid #87449)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 87449 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 87449-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 87449-D100 100 μg of DNA in Tris buffer $585
Add to Cart

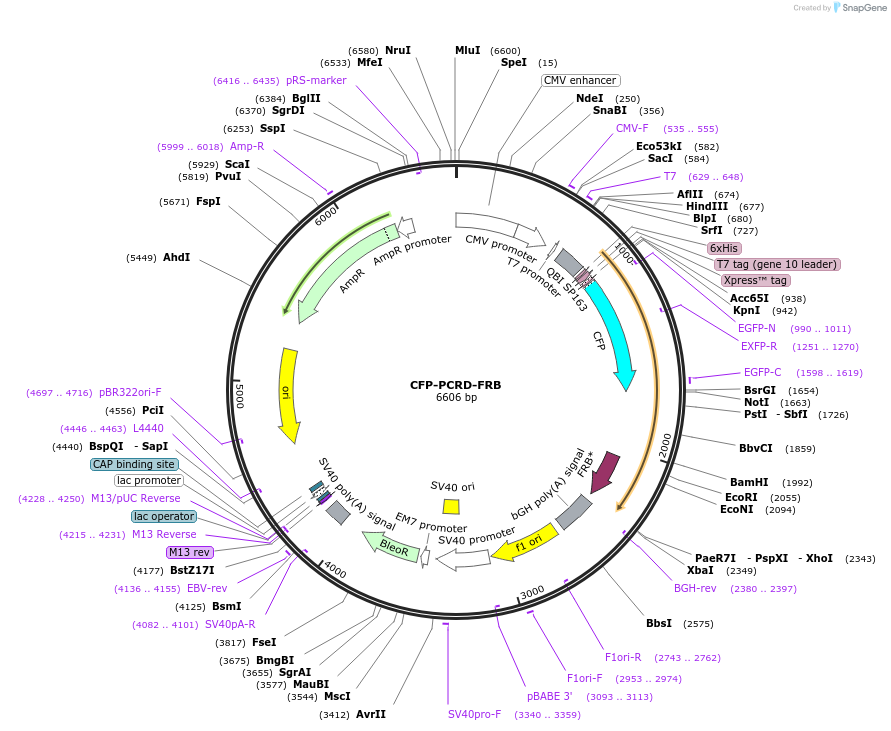

Backbone

  • Vector backbone
    pcDNA4
  • Backbone size w/o insert (bp) 5209
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PCRD (proximal C-terminal regulatory domain)
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    384
  • Entrez Gene
    CACNA1F (a.k.a. AIED, COD3, COD4, CORDX, CORDX3, CSNB2, CSNB2A, CSNBX2, Cav1.4, Cav1.4alpha1, JM8, JMC8, OA2)
  • Promoter CMV
  • Tags / Fusion Proteins
    • FRB (C terminal on insert)
    • 6xHis-T7 (N terminal on insert)
    • CFP (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Kpn I (not destroyed)
  • 3′ cloning site Xho I (not destroyed)
  • 5′ sequencing primer CMV-F
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

FRB (279 bp)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CFP-PCRD-FRB was a gift from Xiaodong Liu (Addgene plasmid # 87449 ; http://n2t.net/addgene:87449 ; RRID:Addgene_87449)

  • For your References section:

    Cooperative and acute inhibitionby multiple C-terminal motifs of L-type Ca2+ channels. Liu N, Yang Y, Ge L, Liu M, Colecraft HM, Liu X. Elife. 2017 Jan 6;6. pii: e21989. doi: 10.7554/eLife.21989. 10.7554/eLife.21989 PubMed 28059704
