pcDNA3HA-AR-LBD
(Plasmid
#89111)
-
Purposemammalian expression of human androgen receptor ligand binding domain amino acid residues 624-919 with N-terminal double HA tag
-
Depositing Lab
-
Depositing OrganizationUniversity of North Carolina at Chapel Hill
Located in United States of America -

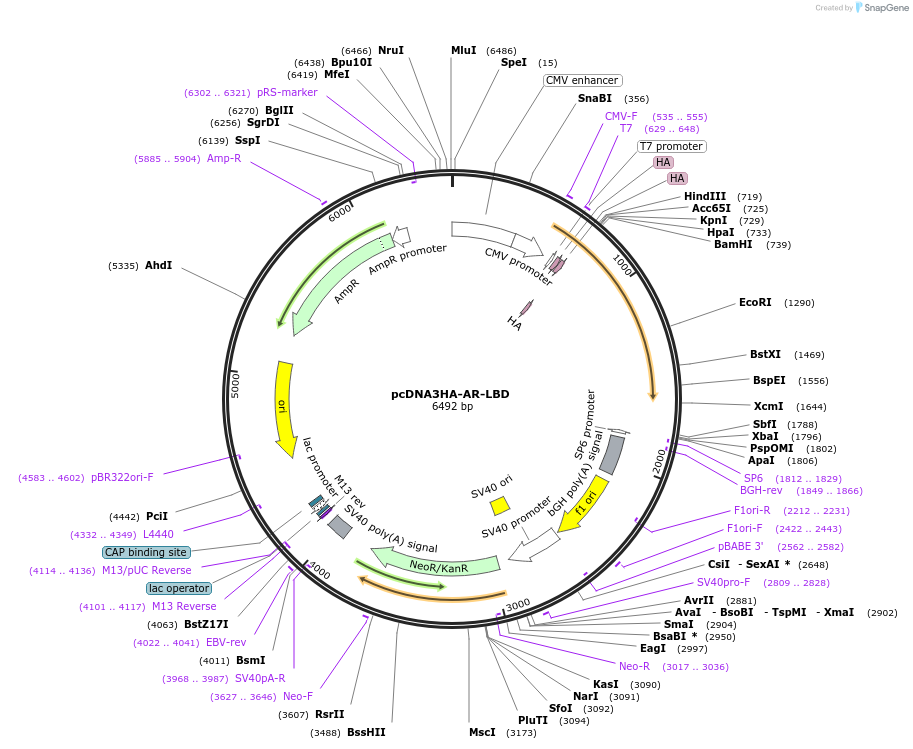

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 89111 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 89111-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 89111-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA3-HA
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namehAR ligand binding domain
-
SpeciesH. sapiens (human)
-
Insert Size (bp)800
-
Mutationcontains Ligand Binding Domain (624-919)
-
Entrez GeneAR (a.k.a. AIS, AR8, DHTR, HUMARA, HYSP1, KD, NR3C4, SBMA, SMAX1, TFM)
- Promoter CMV
-
Tag
/ Fusion Protein
- 2xHA (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site HpaI (destroyed during cloning)
- 3′ cloning site XbaI (not destroyed)
- 5′ sequencing primer CMV-F
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 89111-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 89111-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3HA-AR-LBD was a gift from Elizabeth Wilson (Addgene plasmid # 89111 ; http://n2t.net/addgene:89111 ; RRID:Addgene_89111) -
For your References section:
Activation function 2 in the human androgen receptor ligand binding domain mediates interdomain communication with the NH(2)-terminal domain. He B, Kemppainen JA, Voegel JJ, Gronemeyer H, Wilson EM. J Biol Chem. 1999 Dec 24;274(52):37219-25. doi: 10.1074/jbc.274.52.37219. 10.1074/jbc.274.52.37219 PubMed 10601285
