PurposeUbiquitous expression plasmid, contains CAG promoter (CMV immediate early enhancer and chicken beta actin promoter), MCS and IRES controlled Histone2B-mRFP1 reporter.
-
Depositing Lab
-
Depositing OrganizationUniversity of Oxford
Located in United Kingdom of Great Britain and Northern Ireland -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 92398 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 92398-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 92398-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepCI
- Backbone size w/o insert (bp) 4935
- Total vector size (bp) 6600
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameIRES H2B RFP
-
Insert Size (bp)1665
- Promoter CAG
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CGTGCTGGTTATTGTGCTGT
- 3′ sequencing primer TAAGGAATGGACAGCAGGGG
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/early/2017/05/08/135525 for bioRxiv preprint.
DNA (Catalog # 92398-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 92398-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCI H2B-RFP was a gift from Tatjana Sauka-Spengler (Addgene plasmid # 92398 ; http://n2t.net/addgene:92398 ; RRID:Addgene_92398) -
For your References section:
Genome and epigenome engineering CRISPR toolkit for in vivo modulation of cis-regulatory interactions and gene expression in the chicken embryo. Williams RM, Senanayake U, Artibani M, Taylor G, Wells D, Ahmed AA, Sauka-Spengler T. Development. 2018 Feb 23;145(4). pii: dev.160333. doi: 10.1242/dev.160333. 10.1242/dev.160333 PubMed 29386245

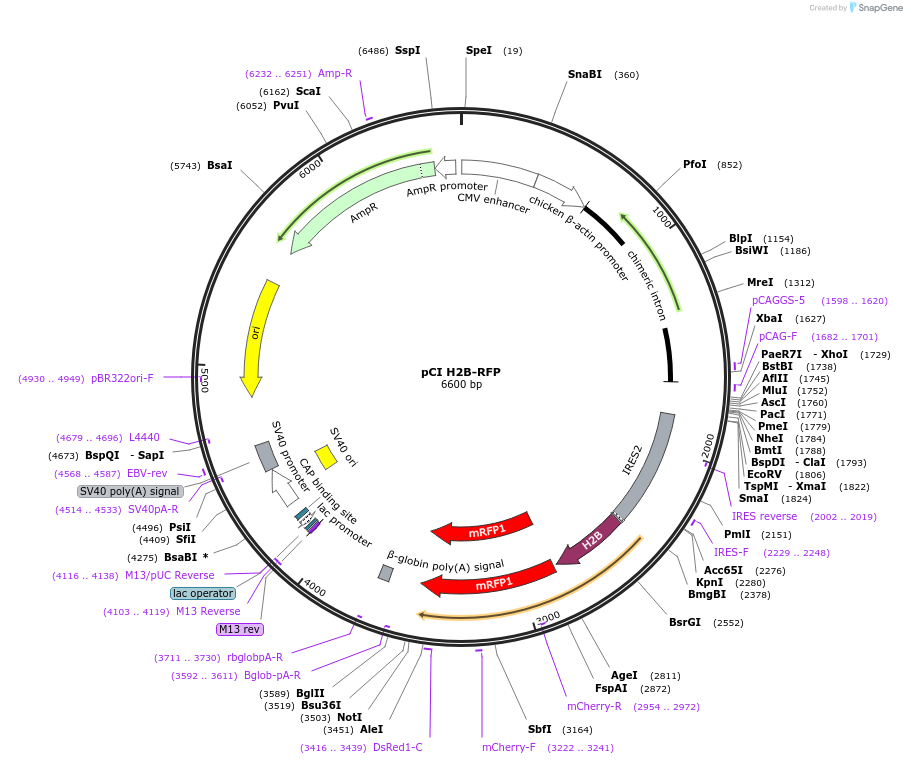

Map uploaded by the depositor.
