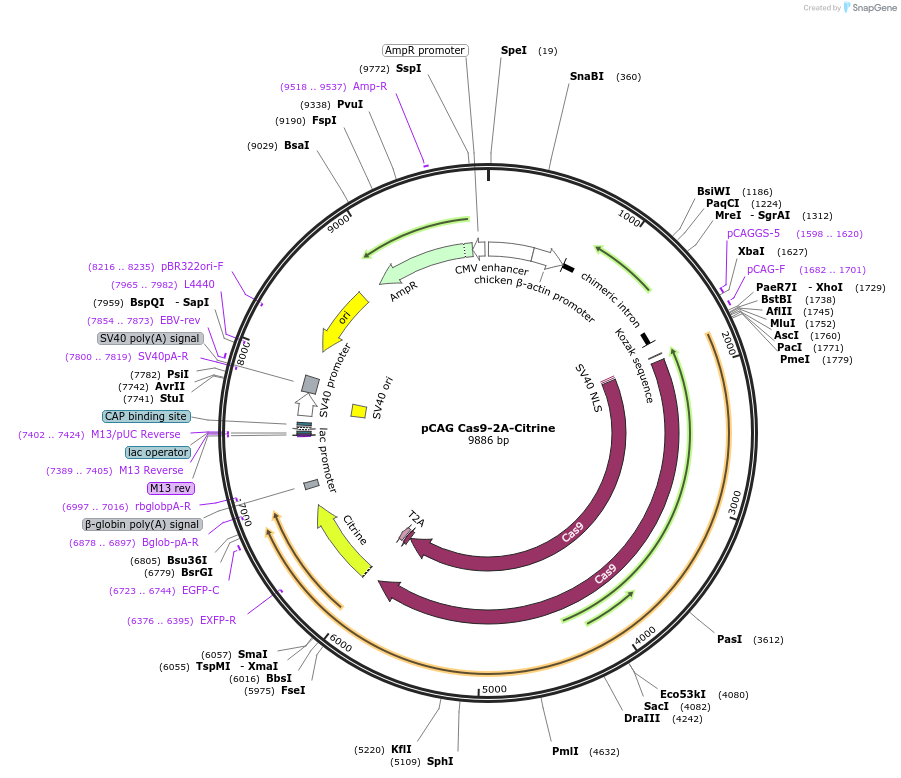

pCAG Cas9-2A-Citrine
(Plasmid #92358)

• Purpose: CAG-driven ubiquitous expression of Cas9. Contains 2A-Citrine reporter. For CRISPR mediated gene knockouts in chicken embryos.
• Depositing Lab: Tatjana Sauka-Spengler
• Depositing Organization: University of Oxford
  Located in United Kingdom of Great Britain and Northern Ireland
• Publication: Williams et al Development. 2018 Feb 23;145(4). pii: dev.160333. doi: 10.1242/dev.160333.
• Citations: 5 Articles

Backbone

• Vector backbone: pCAG
• Backbone size w/o insert (bp): 4944
• Total vector size (bp): 9886
• Vector type: Mammalian Expression

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: Cas9 2A Citrine
• Insert Size (bp): 4944

Cloning Information

• Cloning method: Gibson Cloning
• 5′ sequencing primer: GCTAACCATGTTCATGCCTTC
• 3′ sequencing primer: CTGAGGAGTGAATTGCGGCC

Resource Information

• A portion of this plasmid was derived from a plasmid made by: Cas9_2A_Citrine was amplified from pTK Cas9_2A_Citrine (Williams et al 2017) and inserted into pCI_H2B_RFP (Betancur 2010) digested with Not1 and Nhe1 to remove IRES_H2B_RFP

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Betancur, P., M. Bronner-Fraser, and T. Sauka-Spengler. 2010. Genomic code for Sox10 activation reveals a key regulatory enhancer for cranial neural crest. Proc Natl Acad Sci U S A. 107:3570-3575.

Please visit https://www.biorxiv.org/content/early/2017/05/08/135525 for bioRxiv preprint.

DNA (Catalog # 92358-D50)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 50 μg
• Concentration: 1 μg/μL
• Pricing: $495 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

DNA (Catalog # 92358-D100)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 100 μg
• Concentration: 1 μg/μL
• Pricing: $585 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
