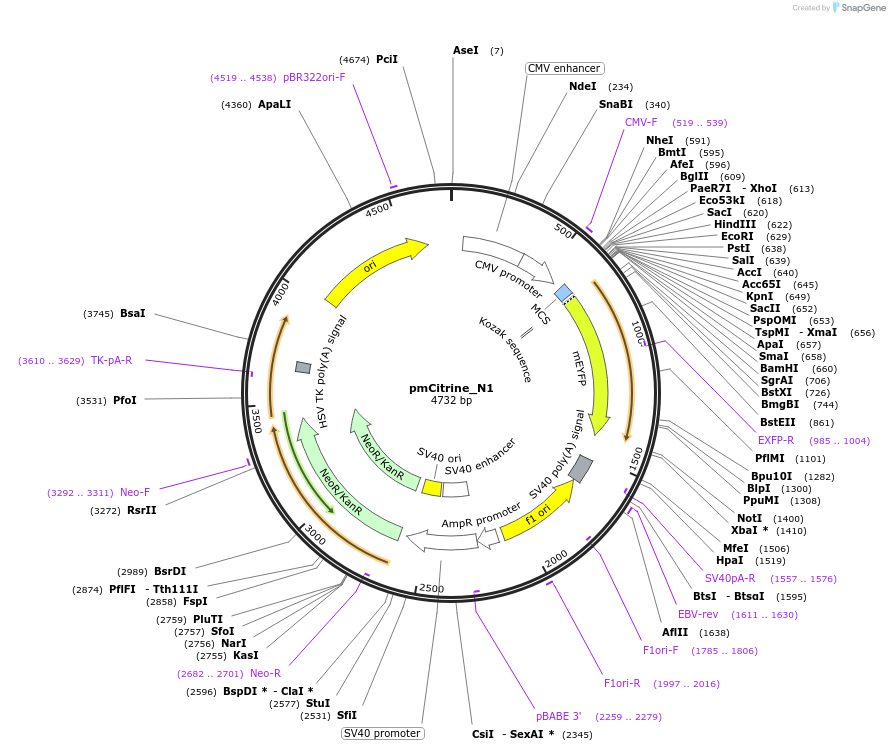

pmCitrine_N1
(Plasmid #92420)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 92420 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pEGFP-N1 series
  • Backbone manufacturer
    CloneTech
  • Modifications to backbone
    Replaced the GFP for synthetic mCitrine
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mCitrine
  • Alt name
    monomeric YFP analog citrine
  • Species
    Synthetic
  • Promoter CMV
  • Tag / Fusion Protein
    • mCitrine (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer TAACAACTCCGCCCCATT
  • 3′ sequencing primer GTCCAGCTCGACCAGGATGGG
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pmCitrine_N1 was a gift from Geert van den Bogaart (Addgene plasmid # 92420 ; http://n2t.net/addgene:92420 ; RRID:Addgene_92420)
  • For your References section:

    Fluorescence lifetime imaging microscopy reveals rerouting of SNARE trafficking driving dendritic cell activation. Verboogen DRJ, Gonzalez Mancha N, Ter Beest M, van den Bogaart G. Elife. 2017 May 19;6. pii: e23525. doi: 10.7554/eLife.23525. 10.7554/eLife.23525 PubMed 28524818
