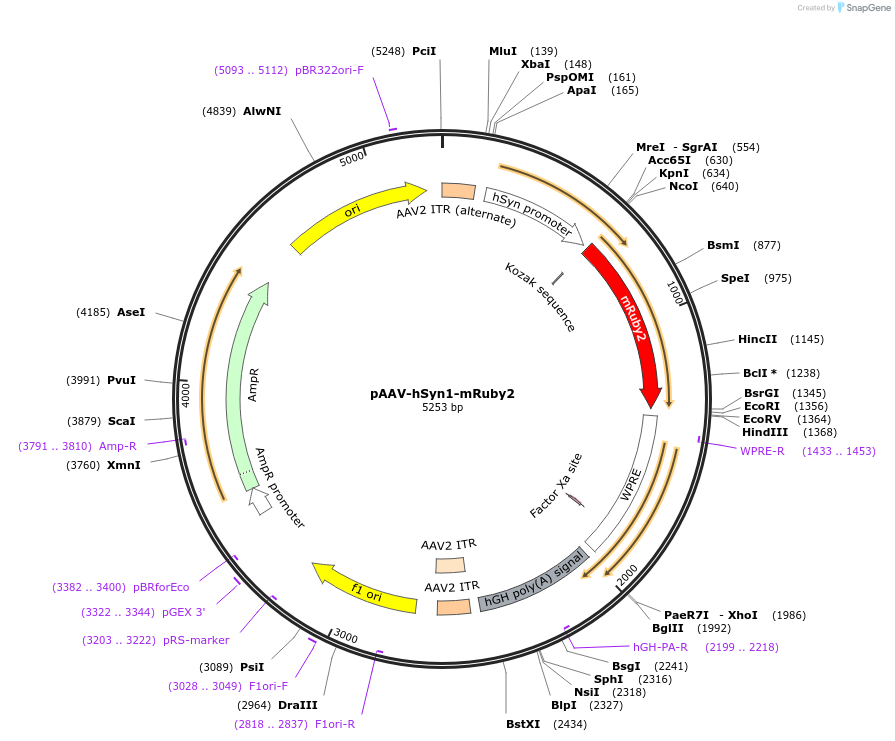

PurposeAn AAV genome that expresses the fluorescent protein mRuby2 from the hSyn1 promoter
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||99126||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.
Vector typeMammalian Expression, AAV
Growth in Bacteria
Bacterial Resistance(s)Ampicillin, 100 μg/mL
Growth Strain(s)NEB Stable
Copy numberHigh Copy
Insert Size (bp)2667
- Promoter hSyn1
- Cloning method Restriction Enzyme
- 5′ cloning site KpnI (not destroyed)
- 3′ cloning site EcoRI/HindIII (not destroyed)
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pAAV-hSyn1-mRuby2 was a gift from Viviana Gradinaru (Addgene plasmid # 99126 ; http://n2t.net/addgene:99126 ; RRID:Addgene_99126)
For your References section:Engineered AAVs for efficient noninvasive gene delivery to the central and peripheral nervous systems. Chan KY, Jang MJ, Yoo BB, Greenbaum A, Ravi N, Wu WL, Sanchez-Guardado L, Lois C, Mazmanian SK, Deverman BE, Gradinaru V. Nat Neurosci. 2017 Aug;20(8):1172-1179. doi: 10.1038/nn.4593. Epub 2017 Jun 26. 10.1038/nn.4593 PubMed 28671695
