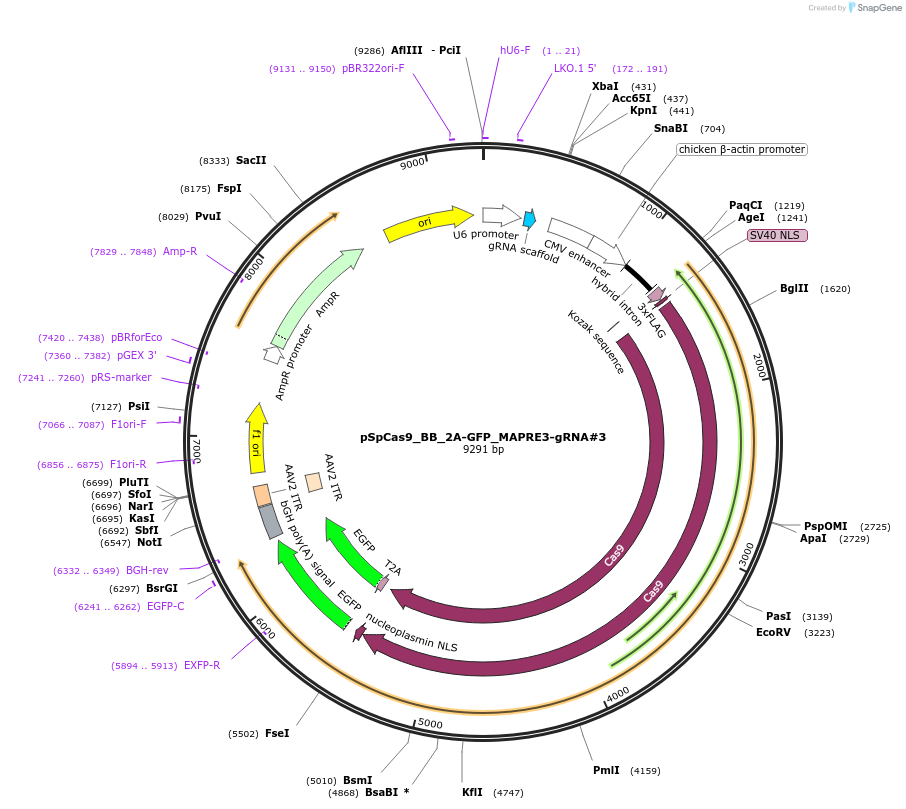

pSpCas9_BB_2A-GFP_MAPRE3-gRNA#3
(Plasmid #107731)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 107731 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pSpCas9(BB)-2A-GFP (Addgene #48138)
  • Backbone manufacturer
    Feng Zhang Lab
  • Backbone size w/o insert (bp) 9288
  • Total vector size (bp) 9291
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    MAPRE3 gRNA #3 (targets Exon 1)
  • Alt name
    EB3
  • gRNA/shRNA sequence
    TCTTGGTATAGTTGAGGTGC
  • Species
    H. sapiens (human)
  • GenBank ID
    NM_001303050.1
  • Promoter U6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BbsI (destroyed during cloning)
  • 3′ cloning site BbsI (destroyed during cloning)
  • 5′ sequencing primer ACGATACAAGGCTGTTAGAGAG
  • (Common Sequencing Primers)

Resource Information

Depositor Comments

For a detailed protocol on knocking out EB1 in human cell lines by CRISPR/Cas9, see our protocol on "Protocol Exchange" (doi and link can be found below)

For rapidly cloning gRNA sequences into pSpCAS9(BB)-2a-GFP in a single RE digestion/ ligation step, see support protocol 3

Generation of cell lines with light-controlled microtubule dynamics
Torsten Wittmann & Jeffrey van Haren
Protocol Exchange (2018) doi:10.1038/protex.2017.155
https://www.nature.com/protocolexchange/protocols/6427

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSpCas9_BB_2A-GFP_MAPRE3-gRNA#3 was a gift from Torsten Wittmann (Addgene plasmid # 107731 ; http://n2t.net/addgene:107731 ; RRID:Addgene_107731)
  • For your References section:

    Local control of intracellular microtubule dynamics by EB1 photodissociation. van Haren J, Charafeddine RA, Ettinger A, Wang H, Hahn KM, Wittmann T. Nat Cell Biol. 2018 Jan 29. pii: 10.1038/s41556-017-0028-5. doi: 10.1038/s41556-017-0028-5. 10.1038/s41556-017-0028-5 [pii] PubMed 29379139
