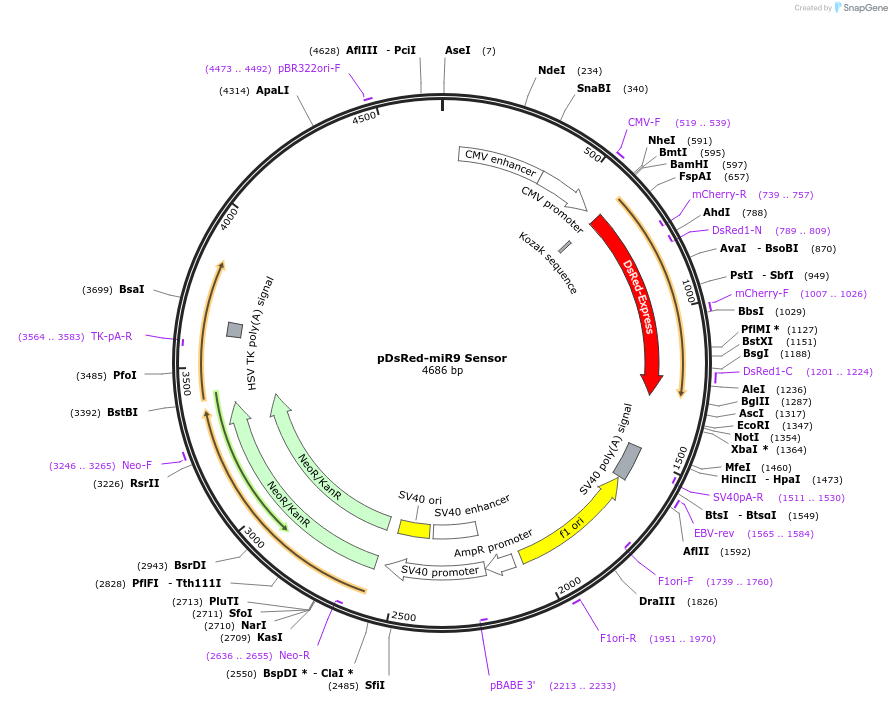

pDsRed-miR9 Sensor
(Plasmid #22742)


Item Catalog # Description Quantity Price (USD)
Plasmid 22742 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.


  • Vector backbone
    pCMV-DsRed-Express (modified with added BglII and EcoRI sites
  • Backbone manufacturer
  • Backbone size w/o insert (bp) 4600
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
  • Growth Temperature
  • Growth Strain(s)
  • Growth instructions
    DH5 alpha
  • Copy number
    High Copy


  • Gene/Insert name
    microRNA 9 binding sites
  • Alt name
  • Insert Size (bp)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII (not destroyed)
  • 3′ cloning site BamHI (unknown if destroyed)
  • 5′ sequencing primer Unknown
  • (Common Sequencing Primers)

Resource Information

Depositor Comments

2 miR9 binding sites (TCATACAGCTAGATAACCAAAGA) inserted between BglII and EcoRI site of pDsRed-Sensor. AscI site separates the two binding sites.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pDsRed-miR9 Sensor was a gift from Lynn Hudson (Addgene plasmid # 22742 ; ; RRID:Addgene_22742)
  • For your References section:

    Identification of dynamically regulated microRNA and mRNA networks in developing oligodendrocytes. Lau P, Verrier JD, Nielsen JA, Johnson KR, Notterpek L, Hudson LD. J Neurosci. 2008 Nov 5. 28(45):11720-30. 10.1523/JNEUROSCI.1932-08.2008 PubMed 18987208
